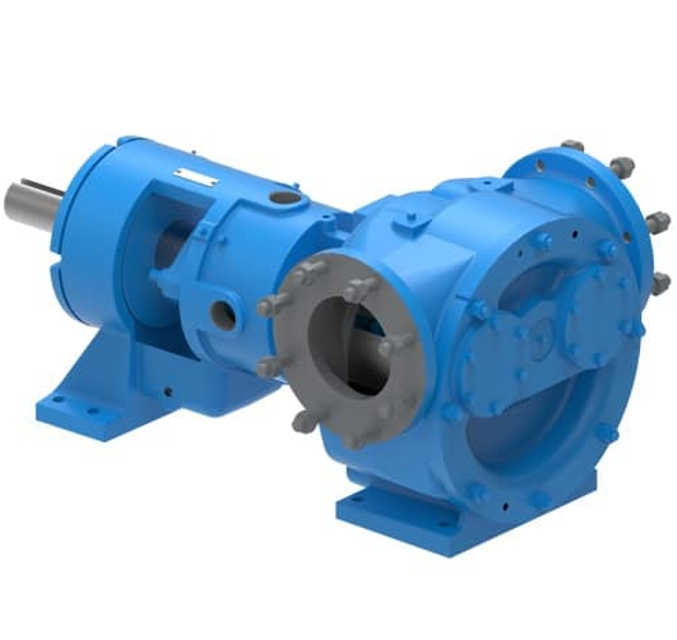

Viking Pump N324EH

Need answers fast?
Explore the manual using AI.

Viking Pump N324EH
Viking Pump N324EH

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Viking Pump N324EH

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Viking Pump N324EH

Viking Pump N324EH

Create an account to install this asset package.

Maintenance Plans for Viking Pump Model N324EH

Integrate maintenance plans directly into your work orders in MaintainX.

Seal Removal

Check mark

Safety Precautions

Check mark

Ensure all pressure in the chamber has been vented through appropriate openings or connections.

Check mark

Lock out or make non-operational the driving means to prevent starting during maintenance.

Check mark

Identify the liquid handled by the pump and understand necessary safety precautions.

Check mark

Obtain and review the material safety data sheet (MSDS) for the liquid.

Check mark

Seal Removal Process

Check mark

Remove any circulation tubing connected to the seal gland.

Check mark

Loosen setscrews on the seal collar to free the cartridge seal from the shaft.

Check mark

Remove the two gland nuts and slide the cartridge seal out through the bearing housing opening.

Run this procedureArrow right

Pump Disassembly

Check mark

Safety Precautions

Check mark

Ensure all pressure in the chamber has been vented through appropriate openings or connections.

Check mark

Lock out or make non-operational the driving means to prevent accidental start-up.

Check mark

Identify the liquid handled by the pump and understand necessary safety precautions. Obtain and review the material safety data sheet (MSDS).

Check mark

Disassembly Process

Check mark

Mark head and casing to ensure proper reassembly.

Check mark

Remove nuts from head using jackscrews to back head away from casing.

Check mark

Use a hoist or cribbing to support head during removal.

Check mark

Remove head gasket, idler, and bushing assembly.

Run this procedureArrow right

Pressure Relief Valve Disassembly

Check mark

Mark valve and head before disassembly to ensure proper reassembly

Check mark

Remove valve cap

Check mark

Measure and record length of extension of adjusting screw

Check mark

Loosen locknut and back out adjusting screw until spring pressure is released

Check mark

Remove bonnet, spring guide, spring and poppet from valve body

Check mark

Clean and inspect all parts for wear or damage

Check mark

Replace parts if necessary

Run this procedureArrow right

Pressure Adjustment

Check mark

Valve Preparation

Check mark

Carefully remove valve cap, which covers adjusting screw.

Check mark

Loosen locknut to unlock adjusting screw.

Check mark

Pressure Gauge Installation

Check mark

Install a pressure gauge in discharge line for actual adjusting operation.

Check mark

Pressure Adjustment

Check mark

Record the initial pressure reading from the gauge.

Check mark

Turn adjusting screw in to increase pressure and out to decrease pressure.

Check mark

Record the adjusted pressure reading from the gauge.

Run this procedureArrow right

Pump Assembly

Check mark

Bracket and Bushing Installation

Check mark

Install bracket bushing with lubrication groove at 12:00 o’clock position if applicable.

Check mark

Refer to Installation of Carbon Graphite Bushings if using carbon graphite.

Check mark

Bracket and Rotor Assembly

Check mark

Install bracket and bushing assembly on the casing ensuring proper alignment with locating pin.

Check mark

Coat rotor shaft assembly with light oil and insert into bracket bushing.

Check mark

Idler and Bushing Installation

Check mark

Coat idler pin with light oil and place idler and bushing on idler pin in head.

Check mark

Refer to Installation of Carbon Graphite Bushings if using carbon graphite.

Run this procedureArrow right
