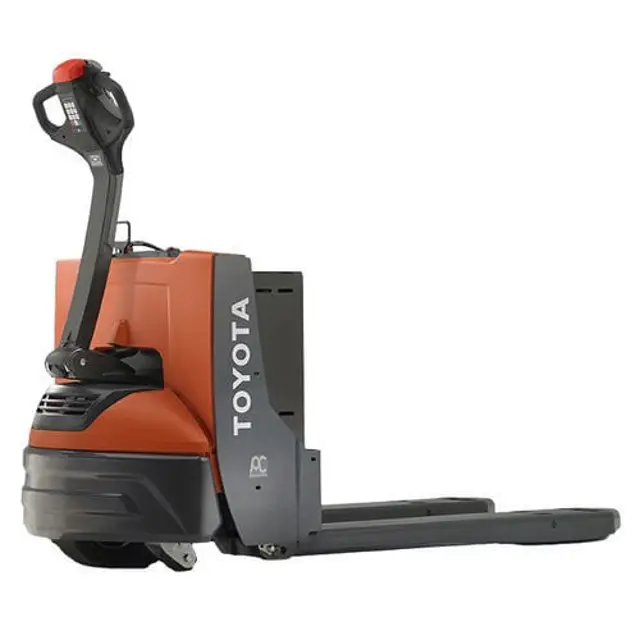

Toyota Powered Pallet Walkie 7HBW23

Check cleanliness and exterior condition

Check the “free play” of the battery. Make sure the battery does not move more than 0.5 in. (13 mm) in any direction

Check the connector. Make sure all powered functions shut down when disconnected

Make sure the battery is properly installed

Check that the horn operates when you press the horn button. (Battery must be connected and the Master Control ON/OFF switch must be ON)

Check the speed and thumb controls

Check the lift-limit switch for lift motor cut-out. Adjust if necessary

Lubricate all levers, shafts ,and linkage points

Check the lift cylinder for leaks. Repair or replace cylinder if necessary

Check for correct fluid level with the forks fully lowered to within 1 in. (25.4 mm) of filler plug. Add fluid if necessary

Check hydraulic connections and mountings

Check the tightness of the pump and motor hardware

Check hoses, tubes, and fittings for leaks. Replace hoses or seals
