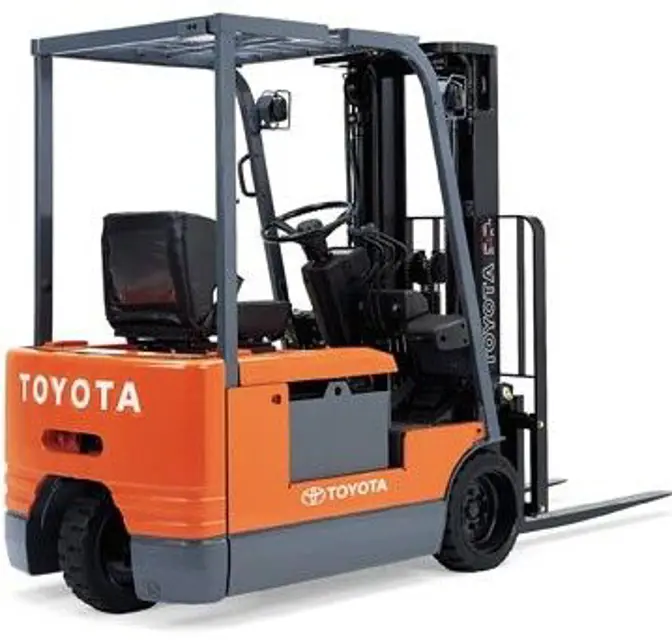

Toyota Forklift Truck 5FBE20
Need answers fast?
Explore the manual using AI.
The Toyota Forklift Truck 5FBE20 is a reliable electric forklift designed for efficient material handling in industrial environments. Known for its durability and performance, this model offers excellent maneuverability and low operational costs, making it a preferred choice for warehouses and distribution centers.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift Truck 5FBE20
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift Truck 5FBE20
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Truck Model 5FBE20
Integrate maintenance plans directly into your work orders in MaintainX.
500 Hourly / 3 Monthly Electrical System Maintenance
Measure motor insulation resistance
Measure motor insulation resistance
Measure cell voltage after charging
170 Hourly / 1 Monthly Travelling Equipment System Maintenance
Measure wheels for tire air pressure
Inspect wheels for tire cuts, damage, and uneven wearing
Inspect wheels for loose rim and hub nuts
Measure wheels for tire groove depth
Inspect wheels for metal chips, pebbles, and other foreign matter trapped in tire grooves
Inspect wheels for rim and disc wheel damage
Inspect wheels for abnormal sound and looseness of front wheel bearing
Inspect wheels for abnormal sound and looseness of rear wheel bearing
2000 Hourly / 12 Monthly Material Handling System Maintenance
Inspect forks for cracks at fork root and welded part
Inspect mast and lift bracket for wear and damage of mast support bush
Inspect mast and lift bracket for wear and damage of roller pins
Sign off on the maintenance inspection
2 Yearly Replacement
Power Steering Hoses replaced
Reserve tank tube replaced
Internal rubber parts of power steering system replaced
Material handling house replaced
Sign off on the replacements
170 Hourly / 1 Monthly Hydraulic System Maintenance
Inspect cylinder for loosening and damage of cylinder mounting
Inspect cylinder for deformation and damage of rod, rod screw, and rod end
Inspect cylinder for operation
Measure cylinder for natural drop and natural forward tilt (hydraulic drift)
Inspect cylinder for oil leak and damage
Inspect cylinder for wear and damage of pin and cylinder bearing
Measure cylinder for lifting speed
Inspect cylinder for uneven movement
Inspect oil pump for oil leak and abnormal sound
Parts for Toyota Forklift Truck 5FBE20
Access the parts list for your equipment in MaintainX.
Oil Control Valve Spring Remover & Replacer
09610-10160-71
Brake Shoe Return Spring Remover
09717-20010
IC Clip
09240-23400-71
Cylinder Cap Remover & Replacer
09620-10160-71
Replacer A Set
09950-60010
Oil Control Valve Spring Remover & Replacer
09610-10160-71
Brake Shoe Return Spring Remover
09717-20010
IC Clip
09240-23400-71
Cylinder Cap Remover & Replacer
09620-10160-71
Replacer A Set
09950-60010
Oil Control Valve Spring Remover & Replacer
09610-10160-71
Brake Shoe Return Spring Remover
09717-20010
IC Clip
09240-23400-71
Cylinder Cap Remover & Replacer
09620-10160-71
Replacer A Set
09950-60010
