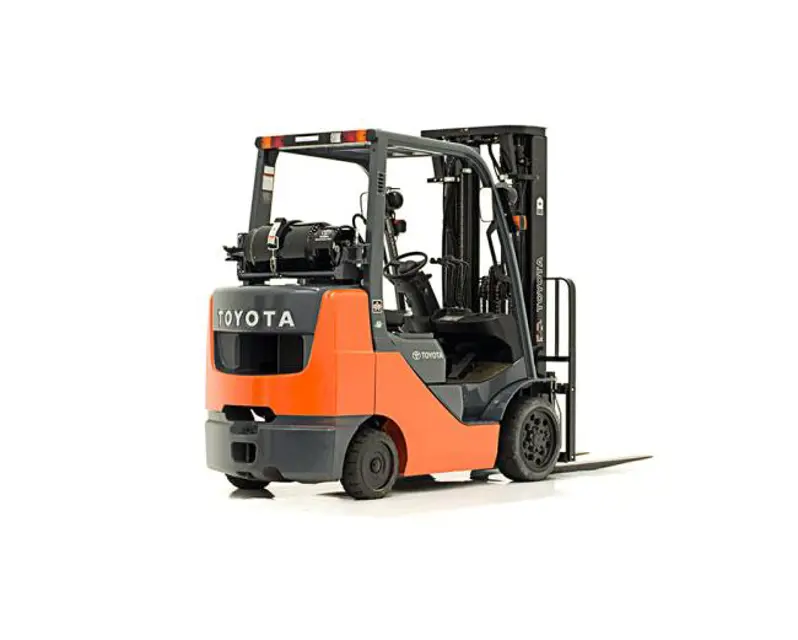

Toyota Forklift 8FGCU25

Need answers fast?
Explore the manual using AI.

Toyota Forklift 8FGCU25
Toyota Forklift 8FGCU25

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Toyota Forklift 8FGCU25

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Toyota Forklift 8FGCU25

Toyota Forklift 8FGCU25

Create an account to install this asset package.

Maintenance Plans for Toyota Forklift Model 8FGCU25

Integrate maintenance plans directly into your work orders in MaintainX.

2000 Hourly / 12 Monthly Material Handling System Inspection

Check mark

Inspect cracks at fork root and welded part while forklift is new

Check mark

Inspect wear and damage of mast support bushing

Check mark

Inspect wear and damage of roller pins

Check mark

Inspect Elongation of chain

Check mark

Sign off on the inspection

Run this procedureArrow right

250 Hourly / 6 Weekly Braking System Maintenance

Check mark

Measure play and reserve of brake pedal

Check mark

Inspect operating force, braking effect, linkage and cable looseness and damage of the parking brake

Check mark

Inspect braking effect of brake pedal

Check mark

Inspect brake pipe for leak, damage and mounting condition

Check mark

Inspect reservoir tank for leak and fluid level

Check mark

Measure clearance between drum and lining on brake drum and brake shoe

Check mark

Inspect wet brake for oil leak

Check mark

Inspect wet brake's cooling oil level in tank

Check mark

Sign off on the brake system maintenance

Run this procedureArrow right

2000 Hourly / 12 Monthly Replacement

Check mark

Differential oil replaced

Check mark

Wheel bearing grease replaced

Check mark

Air cleaner element replaced

Check mark

Cups and seals for brake master and wheel cylinders replaced

Check mark

Wet brake valve seal replaced

Check mark

Sign off on the replacements

Run this procedureArrow right

250 Hourly / 6 Weekly Drive System Maintenance

Check mark

Measure wheels tire inflation pressure in drive system

Check mark

Inspect wheels tire cuts, damage and uneven wearing in drive system

Check mark

Retighten wheels loose rim and hub nuts in drive system

Check mark

Measure wheels tire groove depth in drive system

Check mark

Inspect wheels metal chips, pebbles and other foreign matter trapped in tire grooves in drive system

Check mark

Inspect wheels rim, side bearing and disc wheel damage

Check mark

Inspect wheels abnormal sound and looseness of front wheel bearing

Check mark

Inspect wheels abnormal sound and looseness of rear wheel bearing

Check mark

Sign off on the drive system maintenance

Run this procedureArrow right

250 Hourly / 6 Weekly Engine System Maintenance

Check mark

Inspect proper starting and abnormal noise of the main body

Check mark

Measure rotating condition at idling in main body

Check mark

Measure rotating condition during acceleration in main body

Check mark

Inspect exhaust gas condition of main body

Check mark

Clean air cleaner element

Check mark

Measure valve clearance while forklift is new

Check mark

Inspect clogging and damage in PCV valve and piping in PCV system

Check mark

Measure RPM in governor which shall be in no-load mode

Check mark

Inspect lubrication oil system for leakage, oil level, clogging and dirt of oil filter

Run this procedureArrow right

Parts for Toyota Forklift 8FGCU25

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Oil Pan Seal Cutter

09032-76001-71

Valve Guide Bushing Remover & Replacer

09201-76006-71

Valve Spring Compressor

09202-76002-71

Camshafi Bearing Remover & Replacer

09215-76004-71

Belt Tension Gauge

09216-76001-71

Oil Pan Seal Cutter

09032-76001-71

Valve Guide Bushing Remover & Replacer

09201-76006-71

Valve Spring Compressor

09202-76002-71

Camshafi Bearing Remover & Replacer

09215-76004-71

Belt Tension Gauge

09216-76001-71

Oil Pan Seal Cutter

09032-76001-71

Valve Guide Bushing Remover & Replacer

09201-76006-71

Valve Spring Compressor

09202-76002-71

Camshafi Bearing Remover & Replacer

09215-76004-71

Belt Tension Gauge

09216-76001-71
