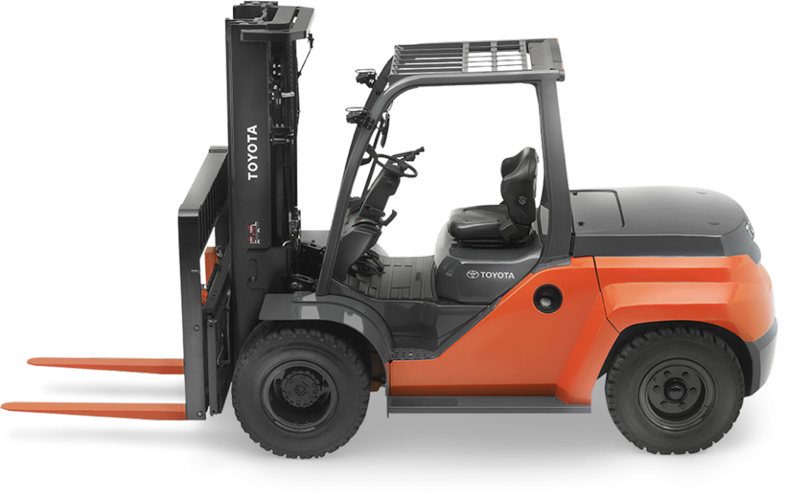

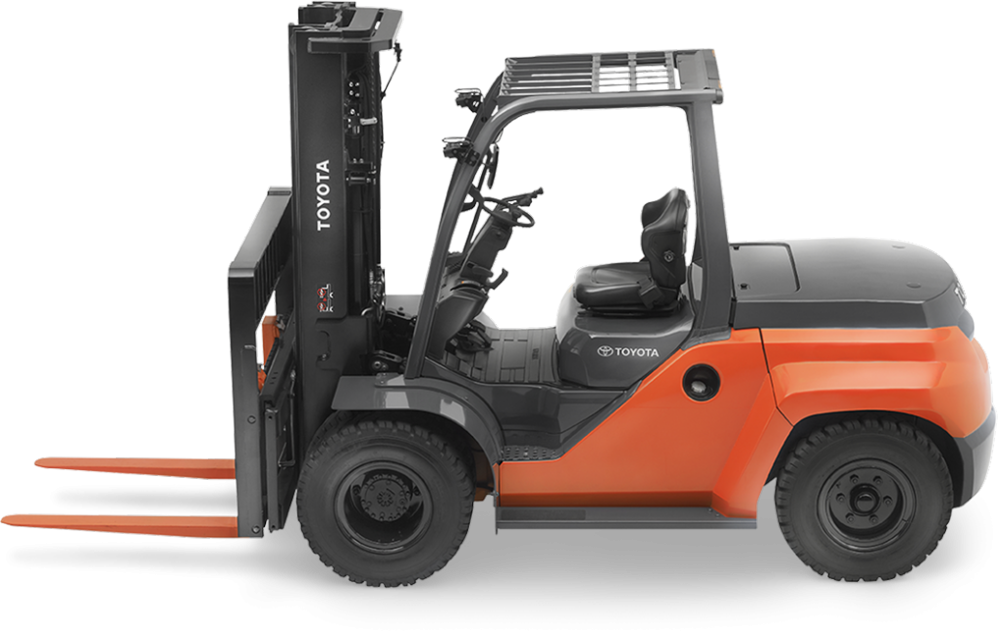

Toyota Forklift 8FG60U

- Replace Torque converter oil filter

Inspect headguard for cracks at welded portion

Inspect headguard for deformation and damage

Tighten Loosening of mounting in back-rest

Inspect back-rest for deformation, crack, and damage

Inspect Function and mounting condition of the lighting system

Inspect Function and mounting condition of the horn

Inspect Function and mounting condition of the direction indicator

Inspect Function and mounting condition of the back up buzzer

Engine coolant for Super LLC replaced

Hours since last SAS swing lock cylinder replacement

SAS swing lock cylinder replaced after 10000 hours

Hours since last Timing belt of 1KD replacement

Timing belt of 1KD replaced after 4000 hours

Inspect cracks at fork root and welded part while forklift is new

Inspect wear and damage of mast support bushing

Inspect wear and damage of roller pins

Measure relief pressure in oil control valve

Sign off on the 2000 Hours / 12 Months Maintenance

Measure tire inflation pressure of the wheels

Inspect tire cuts, damage and uneven wearing of the wheels

Retighten loose rim and hub nuts

Inspect metal chips, pebbles, and other foreign matter

Inspect rim, side bearing, and disc wheel damage

Inspect abnormal sound and looseness of front wheel bearing

Inspect abnormal sound and looseness of rear wheel bearing

Measure Looseness of axle beam in vehicle longitudinal direction
