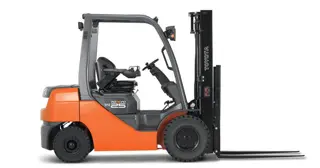

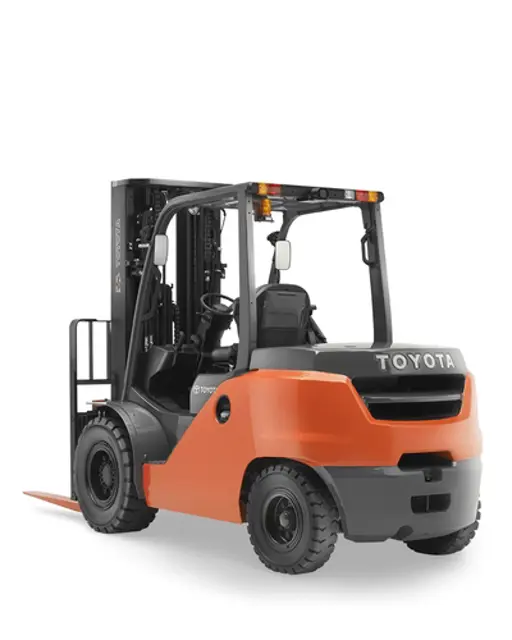

Toyota Forklift 8FG35U
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 8FG35U is a robust industrial asset designed for efficient material handling. Known for its reliability and performance, this forklift model excels in various applications, ensuring optimal productivity in warehouses and construction sites. Regular maintenance is essential to keep it operating at peak efficiency.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 8FG35U
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 8FG35U
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 8FG35U
Integrate maintenance plans directly into your work orders in MaintainX.
500 Hours / 3 Months Power Transmission System Maintenance
Inspect differential for Leak
Inspect differential Oil level
Inspect planetary gear for Leak
Inspect planetary gear Oil level
Inspect torque converter & transmission for leak
Inspect torque converter & transmission fluid level
Inspect torque converter & transmission operating mechanism function and looseness
Inspect torque converter & transmission control valve and clutch functions
Inspect torque converter & transmission inching valve function
500 Hours / 3 Months Hydraulic System Maintenance
Tighten loosening and damage of cylinder mounting
Inspect deformation and damage of rod, rod screw, and rod end
Inspect cylinder operation
Measure natural drop and natural forward tilt (hydraulic drift)
Inspect cylinder for oil leak and damage
Inspect wear and damage of pin and pin support
Measure lifting speed
Inspect cylinder for uneven movement
Inspect oil pump for oil leak and abnormal sound
500 Hours / 3 Months Electrical System Inspection
Inspect State of spark plug (carbon, soot)
Inspect Pinion gear meshing status
Inspect Battery fluid level
Inspect Damage of wiring harness
Inspect fuses
Initial 250 Hours / 6 Weeks Engine System Maintenance
Proper starting and abnormal noise of the engine
Rotating condition at idling
Rotating condition during acceleration
Exhaust gas condition
Air cleaner element cleaned
Valve clearance measurement
Engine ancillary drive belt tension, looseness and damage
Clogging and damage in PCV valve and piping
Oil leak in lub system
1000 Hours / 6 Months Maintenance
Measure Battery fluid specific gravity
Inspect Draining of sedimenter in fuel system
Inspect Open-circuit of glow plug in preheater
Measure stall and hydraulic pressure of torque converter & transmission
Clean hydraulic oil tank and oil strainer
Replace spark plugs
Sign off on the 1000 Hours / 6 Months Maintenance
