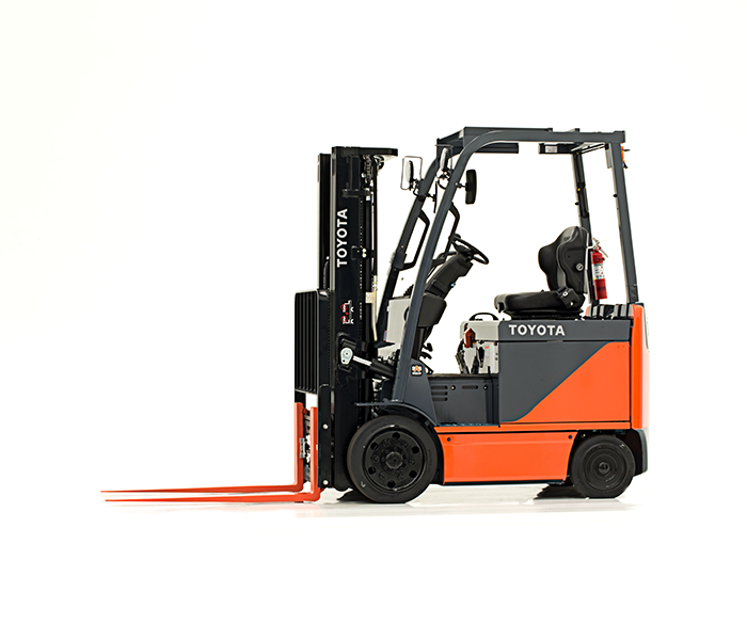

Toyota Forklift 8FBCU30

Inspect cracks, damage and deformation of housing

Inspect cracks, damage and deformation of beam

Inspect abnormal noise looseness of rear axle bearing

Measure looseness of axle beam in vehicle longitudinal direction

Sign off on the drive system maintenance

Inspect abnormality of fork and stopper pin

Inspect misalignment between left and right fork fingers

Inspect deformation and damage of each part and crack at welded part

Inspect mast and lift bracket looseness

Inspect wear, damage and rotating condition of rollers

Inspect wear and damage of mast strip

Inspect tension, deformation and damage of chain

Inspect abnormality of chain anchor bolt

Power steering rubbers parts replaced

Brake fluid reservoir tank hose replaced

Sign off on the 2 yearly replacement

Replace Cups and seals for brake master and wheel cylinders

Sign off on the replacement procedure

Inspect head guard cracks at welded portion

Inspect head guard deformation and damage

Retighten loosening of mounting in back-rest

Inspect back-rest for deformation, crack and damage

Inspect function and mounting condition in lighting system, horn, direction indicator and back up buzzer

Inspect rear-view window for dirt, damage

Inspect rear reflection status of rear-view mirror

Inspect loosening and damage of mounting
