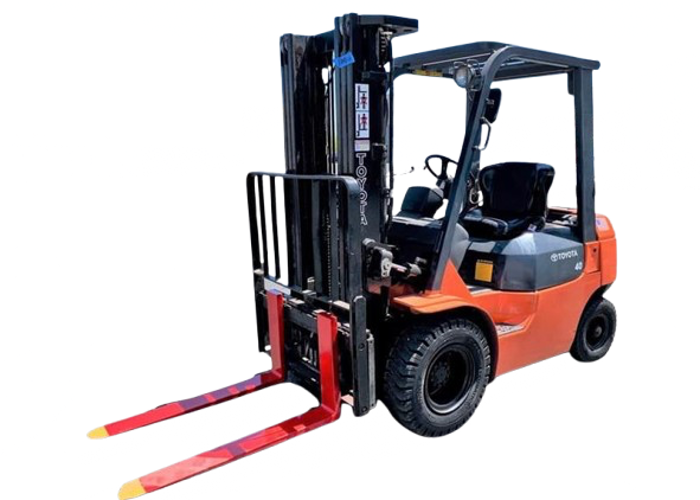

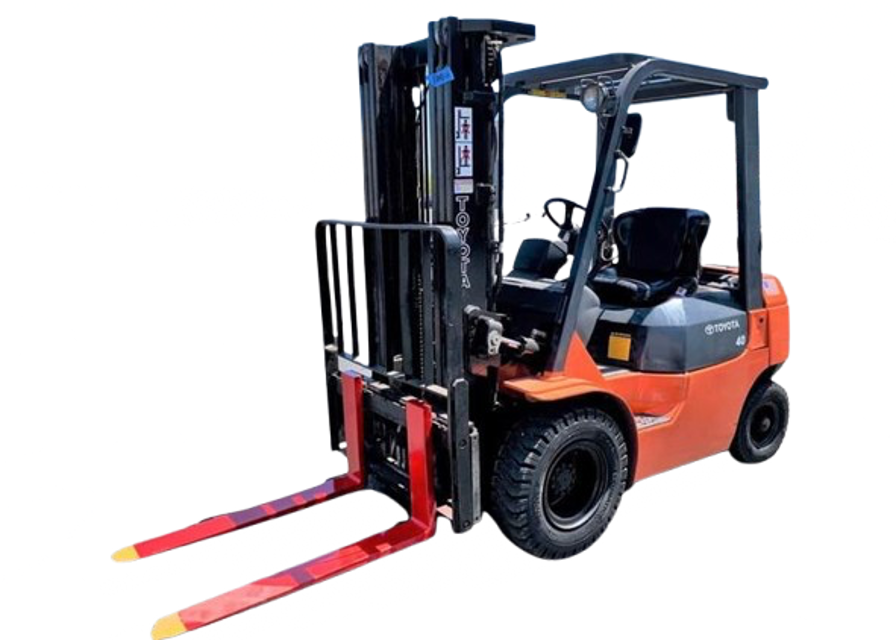

Toyota Forklift 7FGU20

Measure tire inflation pressure of the wheels

Inspect for tire cuts, damage, and uneven wearing

Tighten for loose rim and hub nuts

Inspect for metal chips, pebbles, or foreign matter trapped in tire grooves

Inspect rim, side bearing, and disc wheel for damage

Inspect for abnormal sound and looseness in the front wheel bearing

Inspect for abnormal sound and looseness in the rear wheel bearing

Measure for looseness of axle beam in vehicle longitudinal direction while forklift is new

Measure Valve clearance (IDZ-II·2Z)

Retighten cylinder head bolt loosening

Measure Injection nozzle injection pressure and spray status

Sign off on the engine system maintenance

Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder

Inspect Wear of shoe sliding portion and lining

Inspect Shoe operating condition

Inspect Automatic adjuster function

Inspect Backing plate for deformation, cracks and damage

Retighten Backing plate loose mounting

Measure play and reserve in the brake pedal

Inspect the braking effect of the brake pedal

Inspect the operating force of the parking brake

Inspect the braking effect of the parking brake

Inspect for looseness or damage in the parking brake rod and cable

Inspect for leaks, damage, and mounting condition of the brake pipe

Inspect for leaks and fluid level in the reservoir tank

Measure clearance between drum and lining

Sign off on the brake system maintenance

Inspect damage and cracks of frame, cross members, etc.

Inspect lock cylinder accumulator performance

Inspect rusting and corrosion of load sensor

Sign off on the safety devices maintenance
