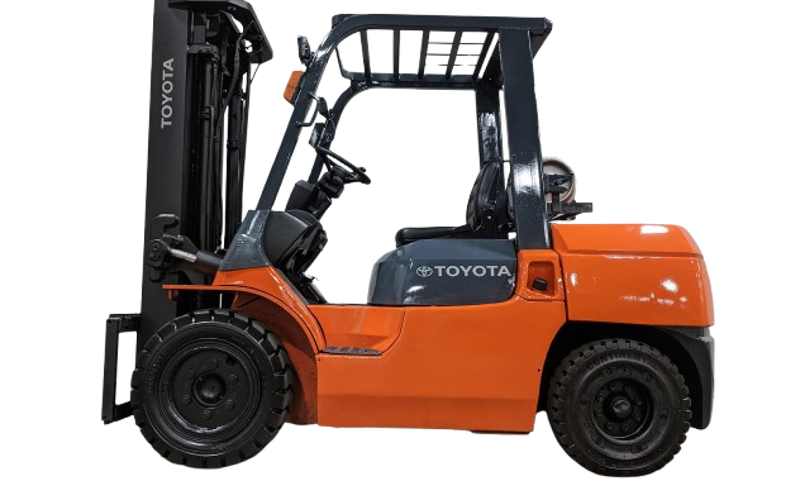

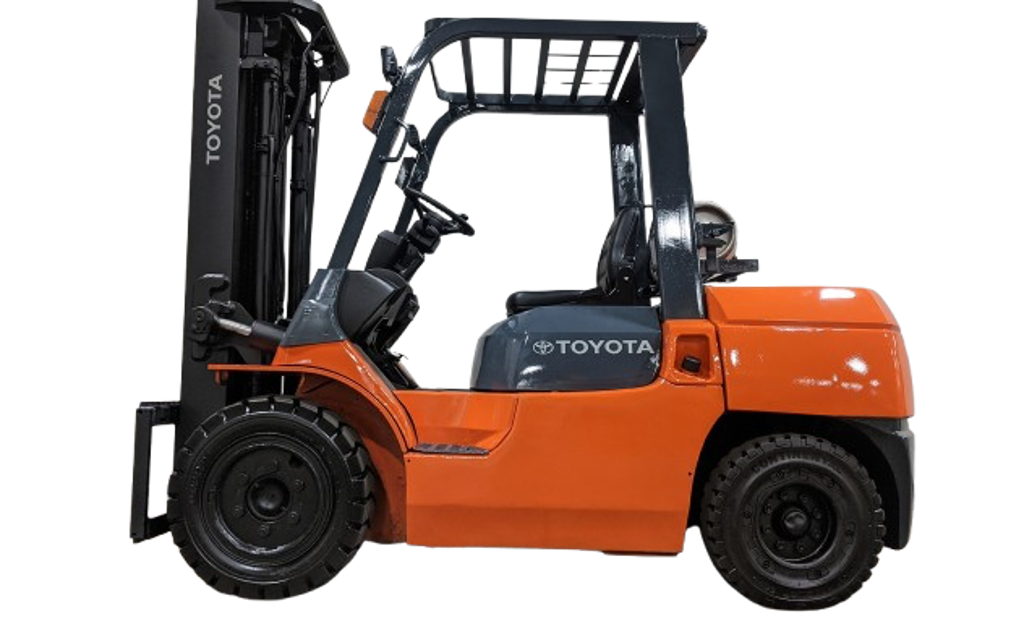

Toyota Forklift 7FGKU40

Inspect Planetary Gear for leak

Inspect Planetary Gear oil level

Inspect Torque Converter & Transmission for Leak

Inspect Torque Converter & Transmission fluid level

Inspect Operating mechanism function and looseness of the Torque Converter & Transmission

Inspect Control valve and clutch functions

Inspect Abnormality of fork and stopper pin

Inspect Misalignment between left and right fork fingers

Inspect Mast and Lift Bracket for deformation and damage of each part and crack at welded part

Inspect Mast and lift bracket looseness

Inspect Wear, damage, and rotating condition of rollers

Inspect Wear and damage of mast trip

Inspect Tension, deformation, and damage of chain

Inspect Abnormality of chain anchor bolt

Power steering rubbers parts replaced

Torque converter rubber hoses replaced

Measure Wheels tire inflation pressure

Inspect wheels for tire cuts, damage, and uneven wearing

Inspect metal chips, pebbles, and other foreign matter

Inspect rim, side bearing, and disc wheel damage

Inspect abnormal sound and looseness of front wheel bearing

Inspect abnormal sound and looseness of rear wheel bearing

Measure looseness of axle beam in vehicle longitudinal direction while equipment is new

Tighten loosening and damage of cylinder mounting

Inspect deformation and damage of rod, rod screw, and rod end

Measure natural drop and natural forward tilt (hydraulic drift)

Inspect cylinder for oil leak and damage

Inspect wear and damage of pin and pin support

Inspect oil pump for oil leak and abnormal sound
