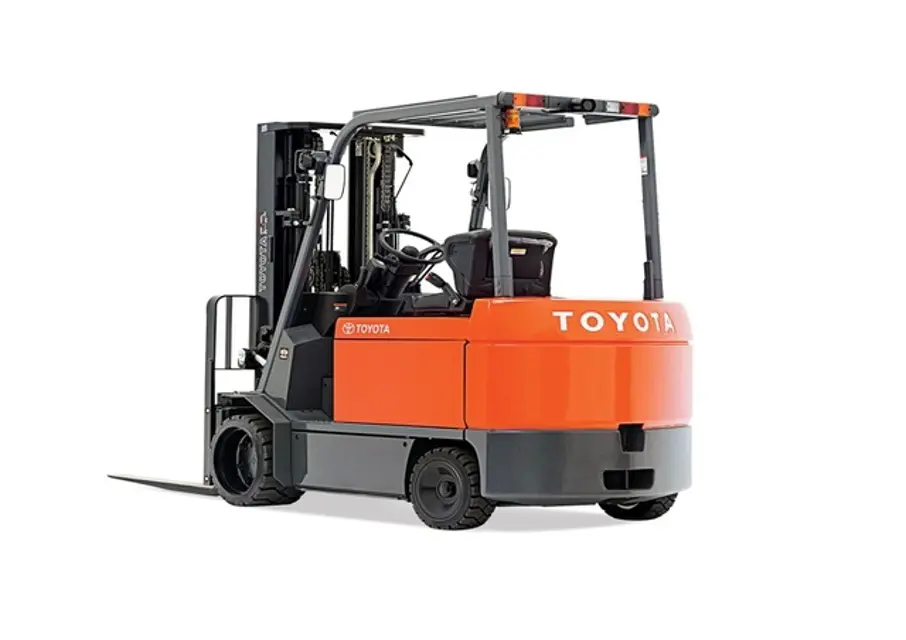

Toyota Forklift 7FBCU45

Inspect front axle for housing cracks and damage

Inspect rear axle for beam cracks, damage and deformation

Measure axle beam forward and backward direction looseness

Inspect Function wear damage mounting looseness

Inspect shoe sliding position and lining wear

Inspect Brake drums for wear and damage

Inspect operating condition of the shoe

Measure brake drum for return spring wear

Inspect function of the automatic control system

Inspect backing plate for deformation, cracks and damage

Tighten looseness in mounting parts

Inspect fork and stopper pin condition

Inspect left and right fork uniformity

Inspect Mast and lift bracket for deformation, damage, and cracks in welded portion

Inspect Mast and lift bracket looseness

Inspect Mast and lift bracket for roller wear, damage, and rotating condition

Inspect Mast strip wear and damage

Inspect Chain and chain wheel for chain tension, deformation, and damage

Inspect Chain anchor bolt condition

Correct Previously Detected Malfunctions

Inspect body for oil leakage, loose parts and exterior damage

Inspect wheels for tire wear or damage; rims and hub nuts

Inspect lamp condition and damaged lamps

Inspect oil level, contamination, and consistency

Warning Decals shall be inplace, clean, can be read

Inspect battery connectors for damaged cable ends, loose or frayed cable

Inspect pedal play and braking effect

Check loosening at connections at the motor and retighten if loose. Check for any damage on insulation covering

Check battery fluid level and specific gravity

Check loosening at cylinder rod end. Retighten tie rod end set bolt if loose

Check bolts and nuts for tightness. Retighten where required

Grease all greasing points, king pins, rear axle center pin cap, etc

Sign off on the 40 Hourly / Weekly Maintenance
