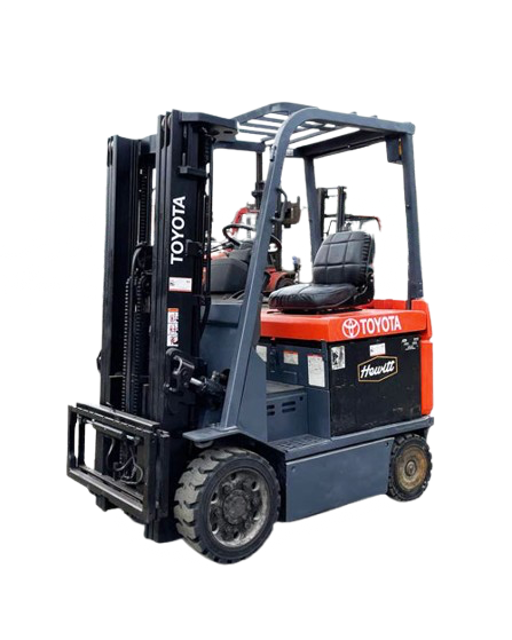

Toyota Forklift 7FBCU25

Motor Rotation sound inspection

Battery Charging level inspection

Battery Electrolyte level inspection

Electrolyte specific gravity measurement

Abnormality in the upper portion of the battery case inspection

Magnetic Contactor for contact looseness, damage, abrasion inspection

Operating condition of the auxiliary contact, contamination, abrasion inspection

Inspect Function wear damage mounting looseness

Inspect shoe sliding position and lining wear

Inspect Brake drums for wear and damage

Inspect operating condition of the shoe

Measure brake drum for return spring wear

Inspect function of the automatic control system

Inspect backing plate for deformation, cracks and damage

Tighten looseness in mounting parts

Measure brake pedal's play and reserve

Inspect pull margin of the parking brake

Inspect braking effect of the parking brake

Inspect parking brake for rod and cable looseness and damage

Inspect Brake Pipe and Hose for leakage, damage, and mounting condition

Measure clearance between drum and lining

Sign off on the braking system maintenance

Voltage measurement of each battery cell after charging

Inspect Mounting condition of the arc shooter

Inspect Operating condition and timings of the magnetic contactor

Inspect Looseness of the coil mounting parts

Inspect Mounting condition of the main circuit lead wire looseness

Measure controller overcorrect limited value

Sign off on the electrical system maintenance

Inspect fork and stopper pin condition

Inspect left and right fork uniformity

Inspect Mast and lift bracket for deformation, damage, and cracks in welded portion

Inspect Mast and lift bracket looseness

Inspect Mast and lift bracket for roller wear, damage, and rotating condition

Inspect Mast strip wear and damage

Inspect Chain and chain wheel for chain tension, deformation, and damage

Inspect Chain anchor bolt condition
