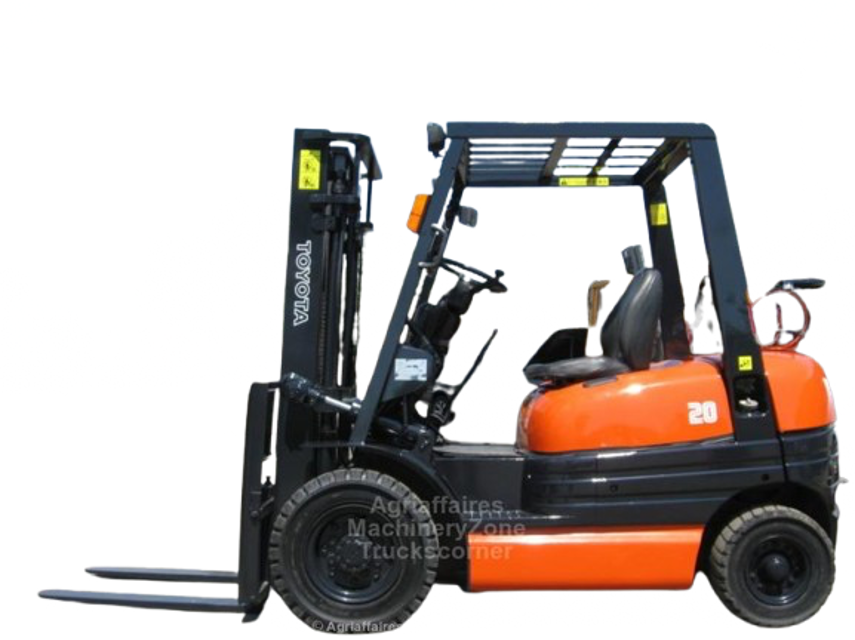

Toyota Forklift 6FG20

Inspect cracks, damage and deformation of housing

Inspect cracks, damage and deformation of beam

Measure looseness of axle beam in vehicle longitudinal direction

Inspect head guard for cracks at welded portions

Inspect head guard for deformation and damage

Retighten for loosening of mounting in the back-rest

Inspect back-rest for deformation, cracks, and damage

Inspect the function and mounting condition of the lighting system

Inspect the function and mounting condition of the horn

Inspect the function and mounting condition of the direction indicator

Inspect the functions of the instruments

Inspect the function and mounting condition of the backup buzzer

Retighten loose joint in propeller shaft

Retighten loose joint in axle shaft

- Measure tire inflation pressure of the wheels

- Inspect for tire cuts, damage, and uneven wearing

- Tighten for loose rim and hub nuts

- Inspect for metal chips, pebbles, or foreign matter trapped in tire grooves

- Inspect rim, side bearing, and disc wheel for damage

- Inspect for abnormal sound and looseness in the front wheel bearing

- Inspect for abnormal sound and looseness in the rear wheel bearing;

Inspect linkage wear and mounting condition of the rods, links and arm

Inspect damage of power steering hose

Inspect cracks and deformation in knuckle

Measure wheel alignment in steering shaft

Measure steering shaft left turning angle

Measure steering shaft right turning angle

Sign off on the steering system inspection
