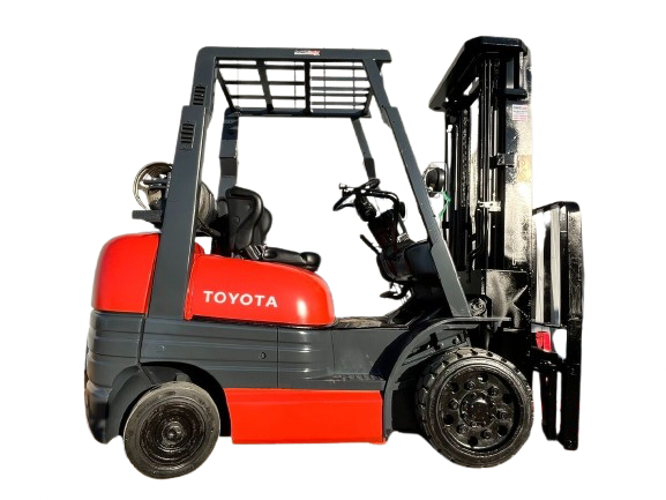

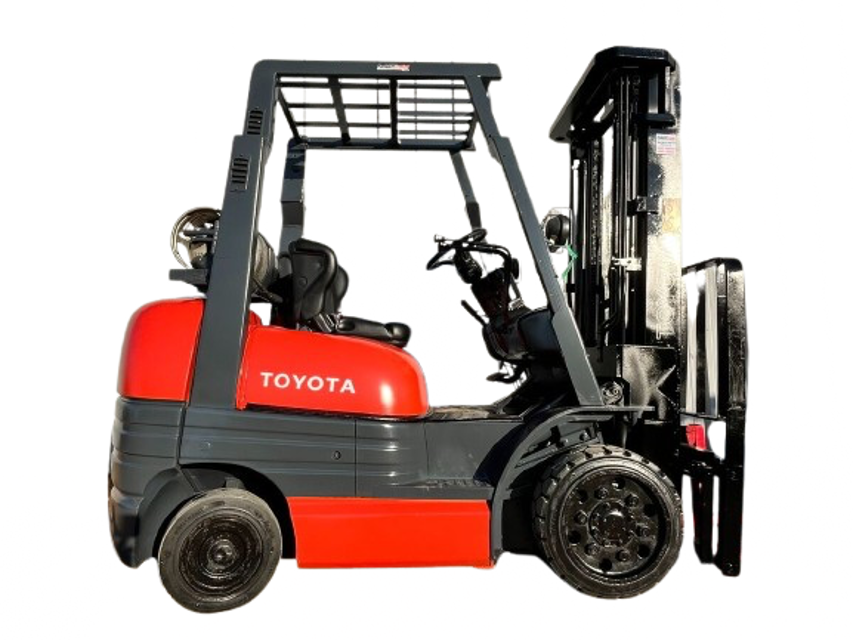

Toyota Forklift 6FD28

- Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder

- Inspect Wear of shoe sliding portion and lining

- Inspect Shoe operating condition

- Measure Return spring fatigue

- Inspect Automatic adjuster function

- Inspect Backing plate for deformation, cracks and damage

- Retighten Backing plate loose mounting;

Inspect fork and stopper pin for abnormality

Inspect for misalignment between left and right fork fingers

Inspect each welded parts for deformation, damage, and cracks

Inspect mast and lift bracket for looseness

Inspect wear, damage, and rotating condition of rollers

Inspect mast trip for wear and damage

Inspect tension, deformation, and damage of chain

Inspect abnormality of chain anchor bolt

Inspect for play and looseness in the steering wheel

Inspect the function of the steering wheel

Retighten looseness of mounting of the gear box

Inspect rod, links and arm for looseness and damage

Inspect for oil leaks in the power steering

Inspect power steering for looseness in mounting and linkage

Inspect knuckle for king pin looseness

Sign off on the steering system maintenance

Inspect cracks at fork root and welded part while forklift is new

Inspect wear and damage of mast support bushing

Inspect wear and damage of roller pins

Measure relief pressure in oil control valve

Inspect plug cord internal discontinuity

Inspect damage and cracks of frame, cross members, etc.

Sign off on the 2000 Hour / 12 Month Maintenance

- Replace cups and seals for brake master and wheel cylinders;
