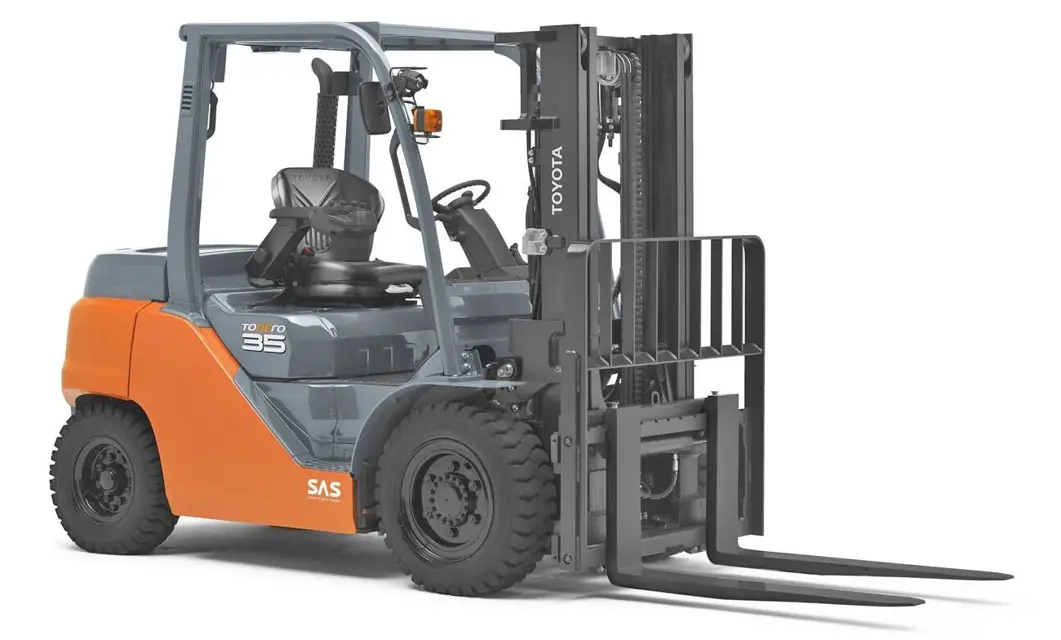

Toyota Forklift 62-8FD30
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 62-8FD30 is a robust industrial forklift designed for heavy-duty applications. Known for its reliability and efficiency, this model offers exceptional maneuverability and lifting capabilities, making it ideal for warehouses and construction sites. Optimize your operations with this versatile Toyota forklift.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 62-8FD30
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 62-8FD30
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 62-8FD30
Integrate maintenance plans directly into your work orders in MaintainX.
250 Hourly / 6 Weekly Power Transmission System Maintenance
Inspect differential oil level in power transmission system
Inspect differential for leak in power transmission system
Inspect torque converter & transmission oil level in power transmission system
Inspect torque converter & transmission for leak in power transmission system
Inspect torque converter & transmission operating mechanism function and looseness in power transmission system
Measure Clutch pedal play
Inspect Abnormal sound and functioning (connection)
Inspect Clutch master cylinder function and leak
Inspect clutch fluid level
1000 Hourly / 6 Monthly Replacement
Replace fuel filter
Replace torque converter oil filter
Replace torque converter oil
Replace hydraulic oil filter
Replace hydraulic oil
Replace brake fluid
Replace spark plugs
Replace DPF Muffler back pressure sensor inline filter (OPT)
250 Hourly / 6 Weekly Braking System Maintenance
Measure play and reserve of brake pedal
Inspect operating force, braking effect, linkage and cable looseness and damage of the parking brake
Inspect braking effect of brake pedal
Inspect brake pipe for leak, damage and mounting condition
Inspect reservoir tank for leak and fluid level
Measure clearance between drum and lining on brake drum and brake shoe
Sign off on the brake system maintenance
2000 Hourly / 12 Monthly Power Transmission System Maintenance
Inspect damage of shift lever cable
Retighten differential bolt loosening
Inspect Looseness at spline connections
Inspect Looseness of universal joint
Inspect Twisting and cracks of axle shaft
Sign off on the power transmission system maintenance
2000 Hourly / 12 Monthly Engine System Maintenance
Measure Valve clearance (IDZ-II·2Z)
Measure main body compression
Retighten cylinder head bolt loosening
Inspect muffler rubber mount
Measure Injection nozzle injection pressure and spray status
Inspect radiator rubber mount
Clean DPF valve
Inspect Exhaust system piping looseness and damage
Inspect Vacuum sensor damage
Parts for Toyota Forklift 62-8FD30
Access the parts list for your equipment in MaintainX.
Engine With Transmission Hanger
09010-23320-71
Piston Rod Guide
09659-26600-71
Bearing Replacer
09316-76008-71
Piston Rod Insert Guide
09658-26600-71
Belt Tension Gage
09216-76002-71
Engine With Transmission Hanger
09010-23320-71
Piston Rod Guide
09659-26600-71
Bearing Replacer
09316-76008-71
Piston Rod Insert Guide
09658-26600-71
Belt Tension Gage
09216-76002-71
Engine With Transmission Hanger
09010-23320-71
Piston Rod Guide
09659-26600-71
Bearing Replacer
09316-76008-71
Piston Rod Insert Guide
09658-26600-71
Belt Tension Gage
09216-76002-71
