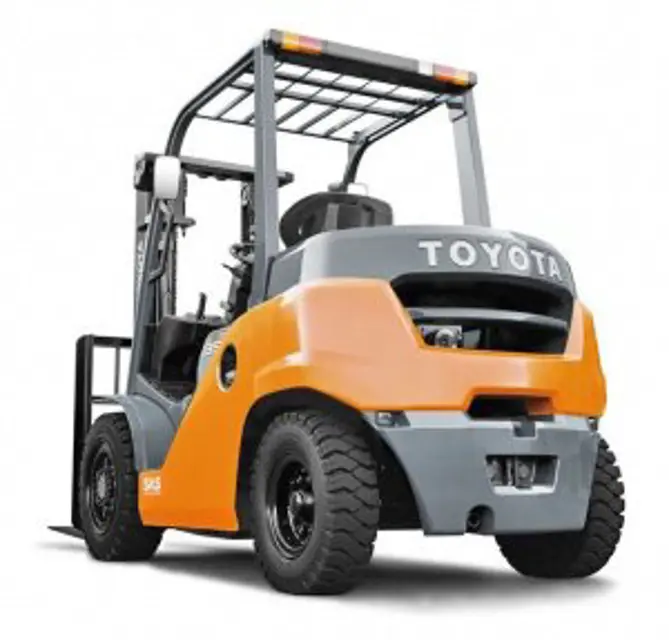

Toyota Forklift 62-8FD20

Measure play and reserve of brake pedal

Inspect operating force, braking effect, linkage and cable looseness and damage of the parking brake

Inspect braking effect of brake pedal

Inspect brake pipe for leak, damage and mounting condition

Inspect reservoir tank for leak and fluid level

Measure clearance between drum and lining on brake drum and brake shoe

Sign off on the brake system maintenance

Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder

Inspect Wear of shoe sliding portion and lining

Inspect Shoe operating condition

Inspect Automatic adjuster function

Inspect Backing plate for deformation, cracks and damage

Retighten Backing plate loose mounting

Inspect Inline filter (for back pressure sensor) of the DPF muffler

Inspect Axle pedal sensor and switch damage

Sign off on the engine system inspection

Inspect crack at welded portion

Inspect defromation and damage in head guard

Retighten loosening of mounting in back-rest

Inspect back-rest for deformation, crack and damage

Inspect function and mounting conditions of the lighting system, horn, direction indicator and backup buzzer

Inspect rear-view mirror for dirt and damage

Inspect rear reflection status of rear-view mirror

Inspect seat for loosening and damage of mounting

Manual transmission oil replaced

Cups and seals for brake master and wheel cylinders replaced

Catalytic mafler (OPT) replaced

Sign off on the replacement procedure
