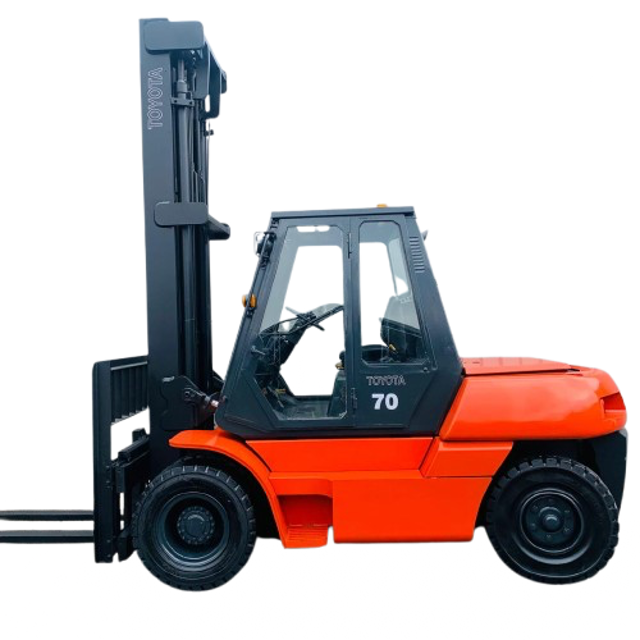

Toyota Forklift 5FD70

Inspect fork and stopper pin for abnormality

Inspect for misalignment between left and right fork fingers

Inspect each part for deformation, damage, and cracks at welded parts

Inspect mast and lift bracket for looseness

Inspect wear, damage, and rotating condition of rollers

Inspect mast trip for wear and damage

Inspect tension, deformation, and damage of chain

Inspect for abnormality in chain anchor bolt

- Replace Cyclone air cleaner element

- Replace Brake valve and accumulator rubber parts

- Replace Cups and seals for brake master and wheel cylinders;

Inspect for cracks on the distributor cap

Inspect for spark plug burning and measure the gap

Inspect for burning on the distributor side terminal

Inspect for wear and damage on the distributor cap center piece

Inspect pinion gear meshing status

Inspect wiring harness for damage

Inspect cracks at fork root and welded part while forklift is new

Inspect wear and damage of mast support bushing

Inspect wear and damage of roller pins

Measure tire inflation pressure

Inspect for tire cuts, damage, and uneven wearing

Retighten loose hub nuts and rim of the wheels

Inspect for metal chips, pebbles, or foreign matter trapped in tire grooves

Inspect rim, side bearing, and disc wheel for damage

Inspect for abnormal sound and looseness in the front wheel bearing

Inspect for abnormal sound and looseness in the rear wheel bearing

Measure looseness of axle beam in vehicle longitudinal direction while forklift is new
