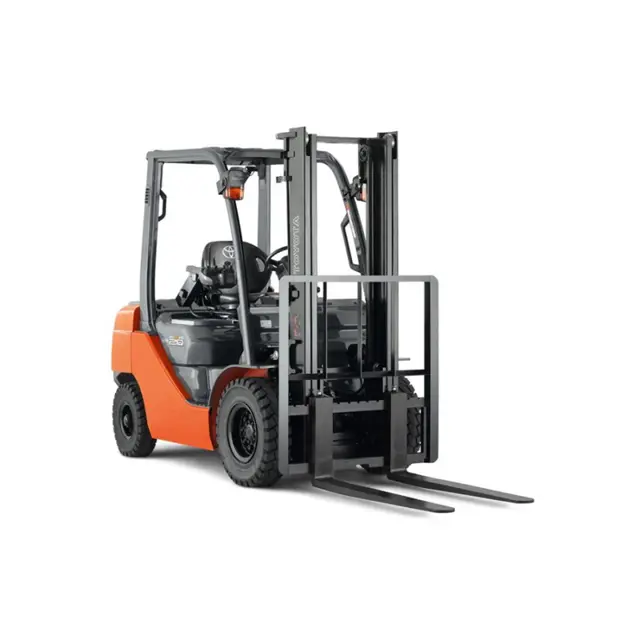

Toyota Forklift 52-8FDF20
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 52-8FDF20 is a robust industrial asset designed for efficient material handling. Known for its reliability and performance, this forklift model excels in various warehouse and construction applications, ensuring optimal productivity and safety in operations.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 52-8FDF20
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 52-8FDF20
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 52-8FDF20
Integrate maintenance plans directly into your work orders in MaintainX.
Initial 250 Hours / 6 Weeks Steering System Maintenance
Inspect Steering Wheel's Play and looseness
Inspect Steering Wheel's function
Inspect Steering Valve for oil leak
Tighten looseness of mounting
Inspect linkage and cable looseness and damage in braking system
Inspect tension, deformation and damage of chain
Sign off on the steering system maintenance
Initial 250 Hours / 6 Weeks Electrical System Inspection
Inspect Cracks on distributor cap
Inspect Distributor side terminal burning
Inspect Distributor cap center piece wear and damage
Inspect Pinion gear meshing status
Inspect Charging function
Inspect Spark plug burning and gap
Sign off on the electrical system inspection
500 Hours / 3 Months Hydraulic System Maintenance
- Tighten Loosening and damage of cylinder mounting
- Inspect Deformation and damage of rod, rod screw, and rod end
- Inspect Cylinder operation
- Measure Natural drop and natural forward tilt (hydraulic drift)
- Inspect cylinder for Oil leak and damage
- Inspect Wear and damage of pin and pin support
- Measure Lifting speed
- Inspect Uneven movement
- Inspect Oil Pump for Oil leak and abnormal sound
1000 Hours / 6 Months Replacement
Replace fuel filter
Replace torque converter oil filter
Replace torque converter oil
Replace hydraulic oil filter
Replace hydraulic oil
Replace brake fluid
Replace spark plugs
Replace DPF Muffler back pressure sensor inline filter (OPT)
Replace wet brake cooling oil (OPT)
1000 Hours / 6 Months Maintenance
Measure Injection timing
Inspect Draining of sedimenter
Inspect DPF muffler Filter
Measure stall and hydraulic pressure of torque converter
Measure hydraulic pressure of transmission
Clean hydraulic oil tank and oil strainer
Parts for Toyota Forklift 52-8FDF20
Access the parts list for your equipment in MaintainX.
Bearing Remover
09320-23000-71
Reamer Bolt Remover
09310-23320-71
Piston Rod Insert Guide
09657-26600-71
Bearing Replacer
09316-76008-71
Piston Rod Insert Guide
09655-26600-71
Bearing Remover
09320-23000-71
Reamer Bolt Remover
09310-23320-71
Piston Rod Insert Guide
09657-26600-71
Bearing Replacer
09316-76008-71
Piston Rod Insert Guide
09655-26600-71
Bearing Remover
09320-23000-71
Reamer Bolt Remover
09310-23320-71
Piston Rod Insert Guide
09657-26600-71
Bearing Replacer
09316-76008-71
Piston Rod Insert Guide
09655-26600-71
