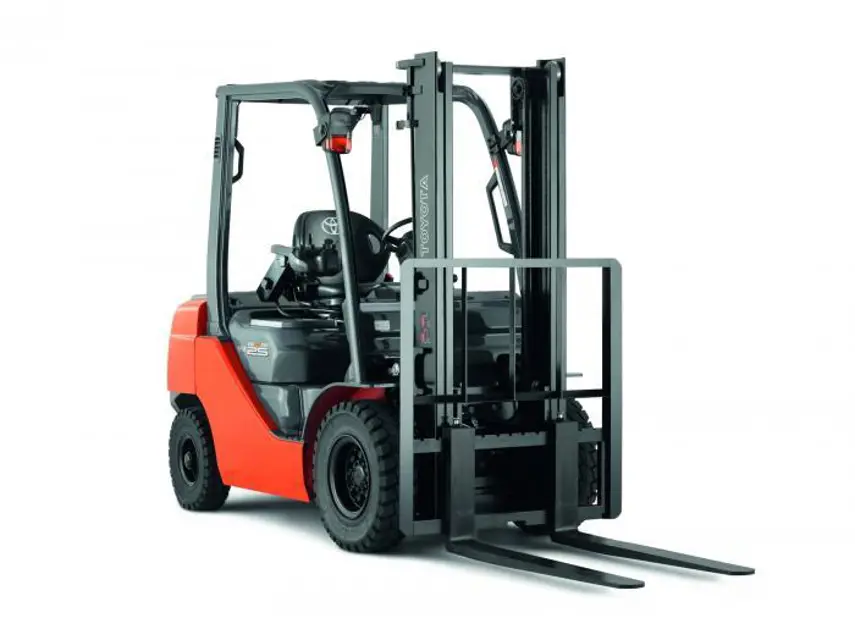

Toyota Forklift 02-8FDF25
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 02-8FDF25 is a robust industrial asset designed for efficient material handling. Known for its reliability and performance, this forklift model excels in various warehouse and construction applications, ensuring optimal productivity and safety in operations.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 02-8FDF25
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 02-8FDF25
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 02-8FDF25
Integrate maintenance plans directly into your work orders in MaintainX.
Initial 250 Hours / 6 Weeks Replacement
Engine oil replaced
Engine oil filter replaced
Hydraulic oil filter replaced
Sign off on the replacement procedure
2000 Hours / 12 Months Replacement
- Replace differential oil
- Replace Catalytic mafler
- Replace wheel bearing grease
- Replace air cleaner element
- Replace cups and seals for brake booster and wheel cylinders
- Replace Wet brake valve seal (OPT);
500 Hours / 3 Months Braking System Maintenance
Measure Brake Pedal's Play and reserve
Inspect Braking effect of the brake pedal
Inspect Operating force of the Parking Brake
Inspect Braking effect of the Parking Brake
Inspect Parking Brake for rod and cable looseness and damage
Inspect Linkage and cable looseness and damage
Inspect break pipe for leak, damage and mounting condition
Inspect reservoir tank for leak and fluid level
Measure Clearance between drum and lining
2000 Hours / 12 Months Braking System Maintenance
Grease applied to parking brake pedal release pin
Inspect Function, wear, damage, leak and mounting looseness
Inspect Wear of shoe sliding portion and lining
Inspect Drum wear and damage
Inspect Shoe operating condition
Inspect Anchor pin rusting
Measure Return spring fatigue
Inspect Automatic adjuster function
Inspect Backing plate for deformation, cracks and damage
Initial 250 Hours / 6 Weeks Electrical System Inspection
Inspect Cracks on distributor cap
Inspect Distributor side terminal burning
Inspect Distributor cap center piece wear and damage
Inspect Pinion gear meshing status
Inspect Charging function
Inspect Spark plug burning and gap
Sign off on the electrical system inspection
Parts for Toyota Forklift 02-8FDF25
Access the parts list for your equipment in MaintainX.
Sub-Harness
09238-13130-71
Wet Brake Disc Setting Tool
09472-26600-71
Piston Rod Insert Guide
09657-26600-71
Bearing Remover
09420-23002-71
Cylinder Cap Remover And Replacer
09620-10100-71
Sub-Harness
09238-13130-71
Wet Brake Disc Setting Tool
09472-26600-71
Piston Rod Insert Guide
09657-26600-71
Bearing Remover
09420-23002-71
Cylinder Cap Remover And Replacer
09620-10100-71
Sub-Harness
09238-13130-71
Wet Brake Disc Setting Tool
09472-26600-71
Piston Rod Insert Guide
09657-26600-71
Bearing Remover
09420-23002-71
Cylinder Cap Remover And Replacer
09620-10100-71
