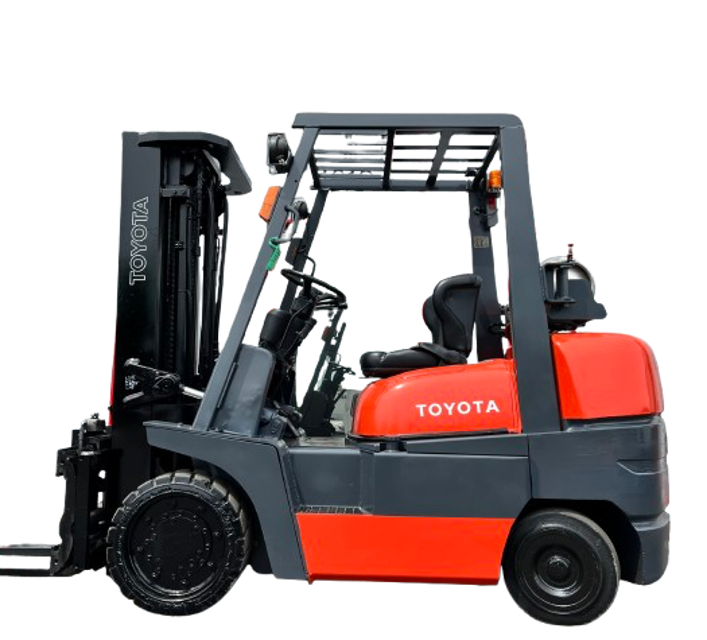

Toyota Forklift 02-6FGA18

Measure Valve clearance (IDZ-II·2Z)

Retighten cylinder head bolt loosening

Measure injection nozzle injection pressure and spray status

Sign off on the engine system maintenance

Power steering rubbers parts replaced

Brake fluid reservoir tank hose replaced

Torque converter rubber hoses replaced

Note: Chains are replaced every 3 years

Sign off on the 2 Year Replacement

Inspect cracks at fork root and welded part while forklift is new

Inspect wear and damage of mast support bushing

Inspect wear and damage of roller pins

Measure relief pressure in oil control valve

Inspect plug cord internal discontinuity

Inspect damage and cracks of frame, cross members, etc.

Sign off on the 2000 Hour / 12 Month Maintenance

Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder

Inspect Wear of shoe sliding portion and lining

Inspect Shoe operating condition

Inspect Automatic adjuster function

Inspect Backing plate for deformation, cracks and damage

Retighten Backing plate loose mounting

Replace torque converter oil filter

Replace hydraulic oil return filter

Sign off on the replacement procedure
