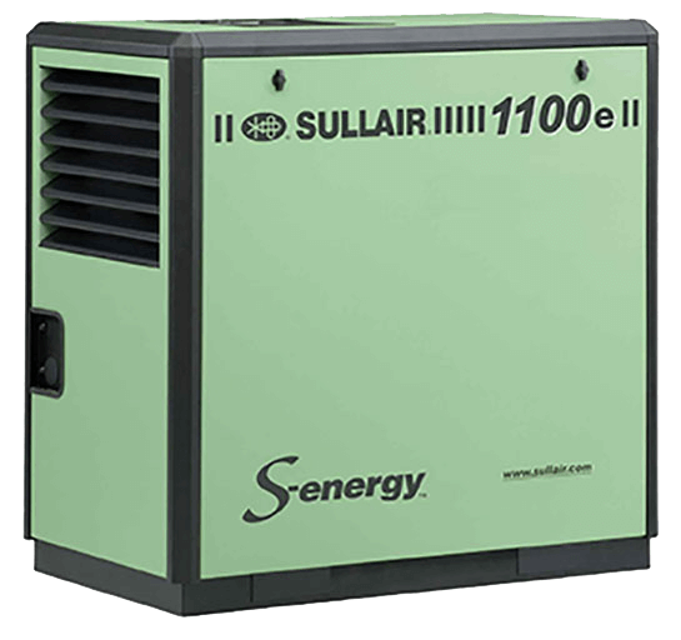

SULLAIR Air Compressor 1107e

Pull the yellow latch to release the cover

Clean exterior of air filter housing

Rotate end cover counterclockwise and remove

Remove air filter element by pulling it out of the housing

Clean interior of housing using a damp cloth

Reassemble in the reverse order of the disassembly

Disconnect the compressor from the power source and lock out the power source.

Isolate the compressor from the line pressure by closing the recommended discharge shut-off valve.

Release all internal pressure from the compressor.

Insert a 100mm maximum length, 6mm diameter pin into the radial-drilled hole in the separator cap.

Loosen and rotate counterclockwise to remove the cap.

Pull out the old element by gripping the end of the element with channel lock pliers or a similar tool.

Replace the fluid filter element

Using a wrench, remove the filter canister

Remove and dispose of filter element

Apply a light film of fluid to the element seal

Install the element into the filter canister

Tighten the canister to the filter head

Check the fluid level in the receiver tank

Describe any issues with fluid levels

Ensure compressor is stopped and all internal pressure is relieved before removing caps, plugs, or other components

Observe the controller display for correct readings
