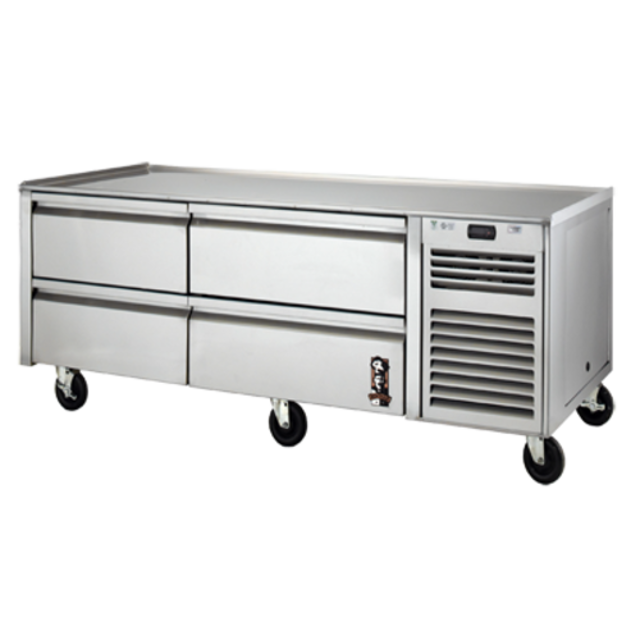

Montague Refrigerated Chef Base Unit RB-108-SC

Disconnect electrical power supply before cleaning any parts of the unit

Remove the drawer from the drawer frame modules

Use warm soapy water to clean storage cabinet doors

Ensure cleaning materials do not contain the following

Rinse thoroughly and dry with a clean soft cloth

Rub in the same direction as the grain pattern of the stainless steel

Remove all product and pans from the base cabinet

Leave the unit to set for 24 hours with all of the drawers removed

Perform the monthly case cleaning

Turn the power to the unit back on

WARNING: DISCONNECT ELECTRICAL POWER SUPPLY BEFORE CLEANING ANY PART OF THE UNIT

Disconnect electrical power supply

Remove louvered panel by lifting it up and pulling the bottom out

Clean dirt and lint from the condenser coil using a vacuum cleaner or soft brush

Use an approved condenser degreaser to remove grease

Reassembly and Power Restoration

Replace louvered panel by installing top of the panel into track and pushing in the bottom so it fits inside the opening

Pull drawer open until it stops

Pull back on slide locks on left and right side retractable slides

Lift drawer slightly while pulling back until drawer assembly is removed

Was the drawer assembly removed successfully?

Remove gasket by pulling from retaining strip

Install new gasket by snapping lip of gasket into retaining strip of door on all sides

Press gasket into retaining strip

Ensure the area is safe and clear for maintenance

Verify that the technician is authorized and trained

Remove screws mounting the condensing guard to the condenser cabinet

Remove 3 screws from the condensing unit base (2 in front, 1 at right rear)

Retract the condensing unit from the condenser cabinet on a sliding shelf

Is there an additional removable right side panel for accessibility?

If applicable, lift panel up and pull the bottom of the panel out to remove
