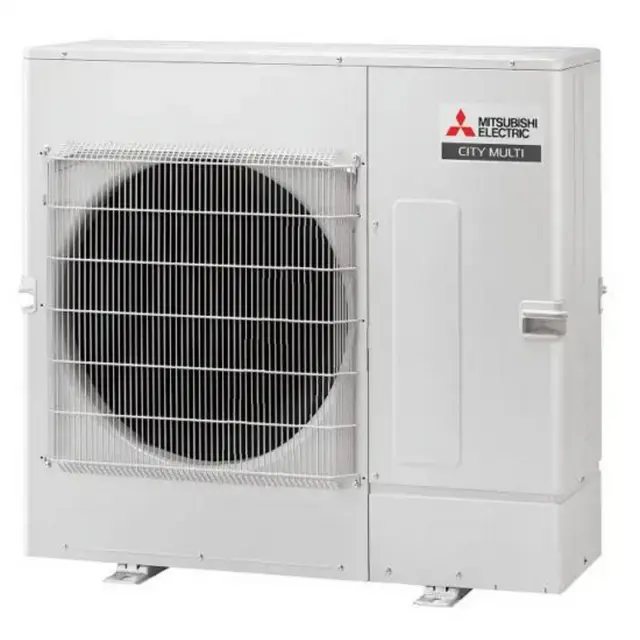

Mitsubishi Split-Type Air Conditioner PUY-A18NKA7-BS
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model PUY-A18NKA7-BS
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit 4-Way Valve Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the front panel
Upload a photo of the removed front panel
Remove the back panel
Upload a photo of the removed back panel
Remove the electrical parts box
Outdoor Unit Fan Motor Replacement
Remove the top panel
Upload a photo of the top panel removed
Remove the front panel
Upload a photo of the front panel removed
Remove 1 nut (M6, left-screw) and detach the propeller
Disconnect the connector CNF1 on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the motor support
Remove 4 fan motor fixing screws (5 × 20) and detach the fan motor
Upload a photo of the detached fan motor
Outdoor Unit Reactor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the front panel
Upload a photo of the removed front panel
Remove the back panel
Upload a photo of the removed back panel
Remove 2 reactor fixing screws (4 × 10) and remove the reactor
Outdoor Unit TH4/TH32/TH33 Thermistors Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the front panel
Upload a photo of the removed front panel
Remove the back panel
Upload a photo of the removed back panel
Remove the electrical parts box
Outdoor Unit TH6 And TH3 Thermistors Replacement
Remove the service panel
Remove the top panel
Remove the front panel
Remove the back panel fixing screws, 5 from the right and 2 from the rear side, and detach the back panel
Disconnect the connector TH3 (white) or TH6/7 (red) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the rear of the electrical parts box
Pull out the thermistor <Liquid> (TH3), and thermistor <2-phase pipe> (TH6) from the sensor holder
Note: Replace the thermistor <2-phase pipe> (TH6) and the thermistor <Ambient> (TH7) together since they are combined
Refer to procedure No. 5. to remove the thermistor <Ambient> (TH7)
Parts for Mitsubishi Split-Type Air Conditioner PUY-A18NKA7-BS
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Compressor - 0,9 KW
SNB130FBCM2
Inverter Starter Type, Compressor - 0,9 KW
SNB130FBCM2
Inverter Starter Type, Compressor - 0,9 KW
