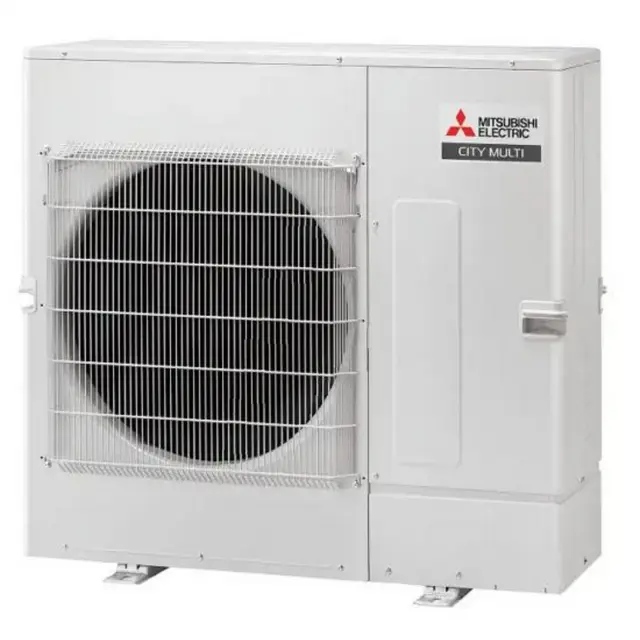

Mitsubishi Split-Type Air Conditioner PUY-A18NKA7
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model PUY-A18NKA7
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Unit TH7 Thermistor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Disconnect the connector TH7 (red) on the controller circuit board in the electrical parts box
Loosen the clamp for the lead wire in the rear of the electrical parts box
Upload a photo of the loosened clamp for the lead wire
Pull out the thermistor <Ambient> (TH7) from the sensor holder
Note: When replacing thermistor <Ambient> (TH7), replace it together with thermistor <2-phase pipe> (TH6), since they are combined together
Outdoor Unit LEV Replacement
Upload a photo of the service panel before removal
Service panel removed
Upload a photo of the top panel before removal
Top panel removed
Upload a photo of the front panel before removal
Front panel removed
Upload a photo of the back panel before removal
Back panel removed
Upload a photo of the electrical parts box before removal
Outdoor Unit TH6 And TH3 Thermistors Replacement
Upload a photo of the service panel before removal
Service panel removed
Upload a photo of the top panel before removal
Top panel removed
Upload a photo of the front panel before removal
Front panel removed
Upload a photo of the back panel before removal
Back panel removed
Upload a photo of the connector TH3 (white) or TH6/7 (red) on the controller circuit board in the electrical parts box before disconnection
Outdoor Unit TH4/TH32/TH33 Thermistors Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the front panel
Upload a photo of the removed front panel
Remove the back panel
Upload a photo of the removed back panel
Remove the electrical parts box
Outdoor Unit Reactor Replacement
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the front panel
Upload a photo of the removed front panel
Remove the back panel
Upload a photo of the removed back panel
Remove 2 reactor fixing screws (4 × 10) and remove the reactor
Parts for Mitsubishi Split-Type Air Conditioner PUY-A18NKA7
Access the parts list for your equipment in MaintainX.
Inverter Starter Type, Compressor - 0,9 KW
SNB130FBCM2
Inverter Starter Type, Compressor - 0,9 KW
SNB130FBCM2
Inverter Starter Type, Compressor - 0,9 KW
SNB130FBCM2
