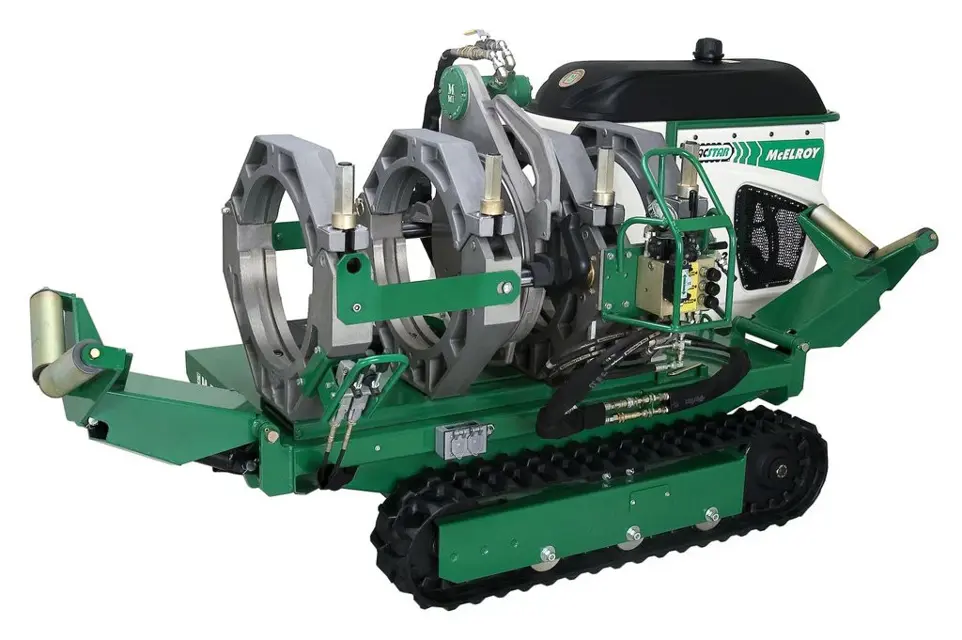

McElroy Manufacturing Fusion Machine 2065

Measure the current antifreeze level

Is the antifreeze level adequate?

Is additional antifreeze needed?

Add antifreeze in a 50/50 mix with water

Is it time to replace the antifreeze mixture?

Ensure the machine is turned off and cooled down

Gather necessary tools and materials

Place the drain tube into a container

Open the drain valve to drain the hydraulic fluid

Remove the old hydraulic filter

Read the engine maintenance instructions

Ensure you have the appropriate oil for the ambient temperature

Locate the oil filter behind the rear cowling

Locate the dipstick on the opposite side of the engine

Locate the oil drain plug on the bottom of the oil pan

Locate the oil filler cap on top of the engine

TracStar 28 Belt Tension Adjustment

Ensure machine is off before starting maintenance

Use caution when making pressure adjustments while the machine is running

Avoid contact with moving parts during operation

Locate the tensioner beside the rear pipe lift

Loosen the jam nut and tighten the spherical nut to 6-10 ft lbs

Remove screws and cover to access the adjustment system

Turn hex shaped valve counterclockwise no more than 1 turn

Slowly rotate the track if grease did not start to drain out

Turn valve clockwise and tighten it when correct track tension is obtained
