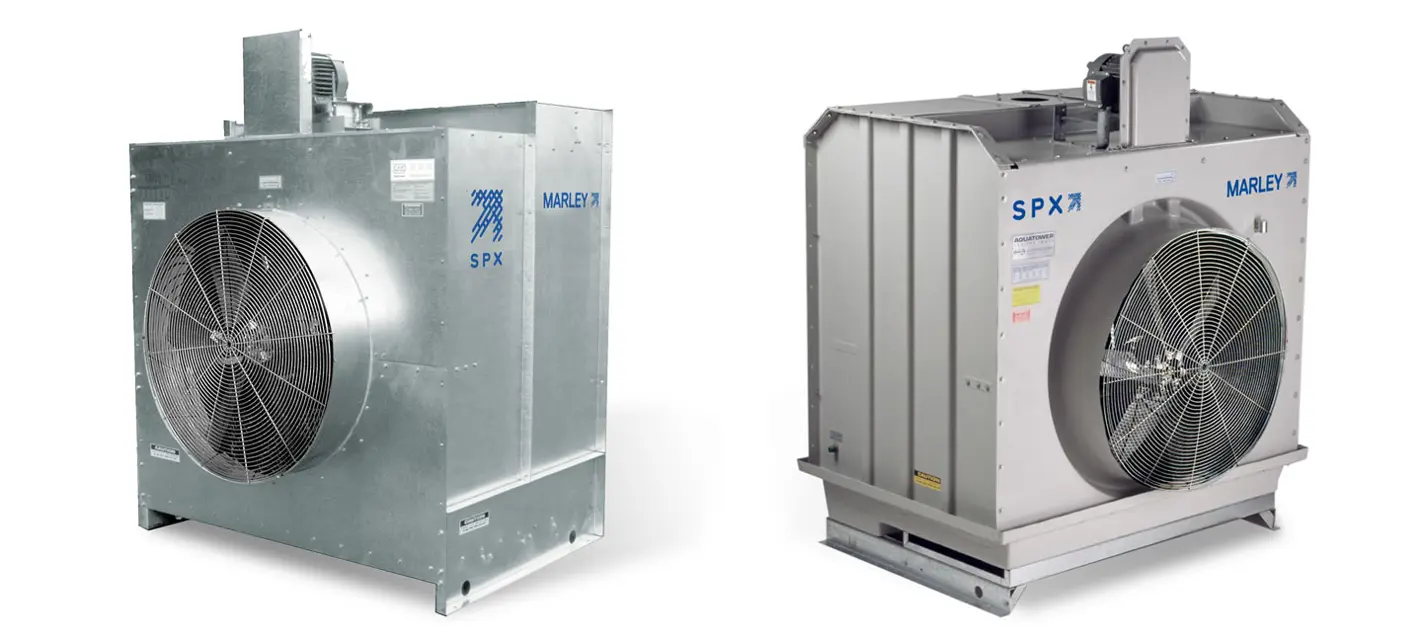

Marley Cooling Tower 3853

Bearing Housing Oil Level Check

Check the oil level in the oil cup at shutdown.

Is the oil level in the oil cup adequate?

Fill to the proper level with SAE 30 (ISO 100) weight oil if necessary.

Operate the system until the oil is warm.

Refill with SAE 30 (ISO 100) weight oil.

Ensure mechanical equipment is inoperable during maintenance

Lock out electrical system disconnect switch

Use appropriate ladder adjacent to the tower

Wear protective clothing, gloves, and shoes

Check that all the belts are in place

Measure the tension of each belt

Is the belt tension within the recommended range?

Lubricate the motor according to the manufacturer's instructions.

Remove oil, dust, or scale deposits from the motor.

Clean and lubricate motor at the close of each operating season.

Ensure there is no interference with the free rotation of the fan drive before starting the motor.

Run the motor for three hours to dry out windings and relubricate bearing surfaces.

Ensure bearings are adequately lubricated before returning motor to service at the start of a new operating season.

Is the blowdown system discharging water continuously during operation?

Enter the current concentration level of dissolved solids in the water.

Enter the current blowdown rate (percent of total water flow rate).

Verify the concentration levels are within acceptable range (2-4 concentrations)

Is the water treatment company maintaining a relatively constant level of concentrations?

Are water treatment chemicals being added outside the cold water basin?

Drain the entire system including cooling tower, system piping, and heat exchangers

Describe any necessary repairs made

Apply protective coating to all metal parts

Pay attention to bearing housing supports during maintenance

Is the shutdown period longer than seasonal?
