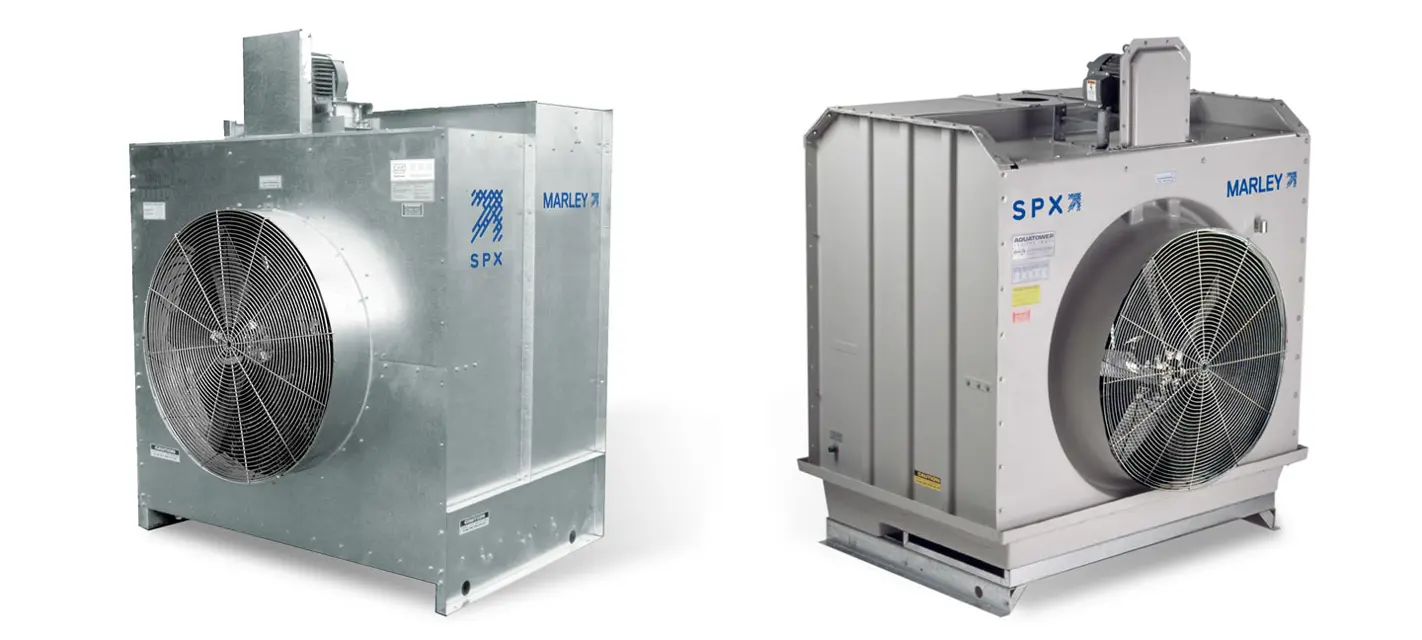

Marley Cooling Tower 4842
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Marley Cooling Tower 4842
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Marley Cooling Tower 4842
Create an account to install this asset package.
Maintenance Plans for Marley Cooling Tower Model 4842
Integrate maintenance plans directly into your work orders in MaintainX.
1 Monthly Bearing Housing Oil Level Check
Bearing Housing Oil Level Check
Check the oil level in the oil cup at shutdown
Is the oil level adequate?
Fill to the proper level with SAE 30 (ISO 100) weight oil if necessary
Start of New Operating Season
Operate until the oil is warm
Drain the warm oil
Refill with SAE 30 (ISO 100) weight oil
Bearing Housing Refill
6 Monthly Cooling Tower Maintenance
WARNING!
Preparation
Ensure fan motor is locked out
Wear proper personal protective equipment
Cleaning and Disinfection
Clean the cooling tower thoroughly
Disinfect with biocides
Is there any biofouling present?
Are there positive cultures of legionella?
Cooling Tower Maintenance
Safety Precautions
Ensure mechanical equipment is inoperable during maintenance
Lock out electrical system disconnect switch
Use appropriate ladder for upper surface maintenance
Wear protective clothing
Makeup Float Valve Maintenance
Check float valve for proper operation
Check water level for proper setting
Basin and Suction Screen Maintenance
2 Weekly Belt Tension Check
Safety Precautions
Ensure mechanical equipment is inoperable during maintenance
Lock out electrical system disconnect switch
Use appropriate ladder adjacent to the tower
Wear protective clothing, gloves, and shoes
Belt Tension Check
Inspect belt for wear and tear
Measure belt tension
Is the belt tension within the recommended range?
Cooling Tower Cleaning
WARNING!
Preparation
Ensure fan motor is locked out
Wear proper personal protective equipment
Inspection and Cleaning
Inspect for concentrations of dirt, scale, and algae
Perform periodic flushing and cleaning
Water Treatment Program
Follow a complete water treatment program
Parts for Marley Cooling Tower 4842
Access the parts list for your equipment in MaintainX.
V-Belt A112 (60-Cycle)
221820
Motor Sheave (60-Cycle)
107508
Fan Sheave (60-Cycle)
154245
Fan 42 In. Diameter
437582
Bearing Housing 1301SE
C72316
V-Belt A112 (60-Cycle)
221820
Motor Sheave (60-Cycle)
107508
Fan Sheave (60-Cycle)
154245
Fan 42 In. Diameter
437582
Bearing Housing 1301SE
C72316
V-Belt A112 (60-Cycle)
221820
Motor Sheave (60-Cycle)
107508
Fan Sheave (60-Cycle)
154245
Fan 42 In. Diameter
437582
Bearing Housing 1301SE
C72316
