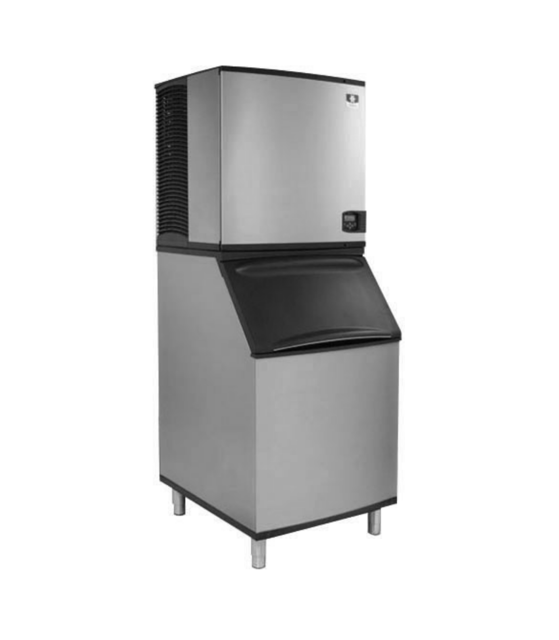

Manitowoc Refrigeration Equipment IY0524A

Ensure you have read and understood the manual instructions

Verify that maintenance procedures are not covered by warranty

Confirm cleaning and sanitizing is scheduled every six months

Consult a qualified service company if more frequent cleaning is needed

Ensure Manitowoc Ice Machine Cleaner and Sanitizer are available

Wear safety goggles or face shield

Ensure cleaner and sanitizer solutions are not mixed

Open the front door to access the evaporator compartment

Select method to remove ice from evaporator

Remove all ice from the bin/dispenser

Ensure the area around the ice machine is clear of obstructions

Wipe surfaces with a damp cloth rinsed in water to remove dust and dirt

Is there any greasy residue remaining?

Use a damp cloth rinsed in a mild dish soap and water solution to remove greasy residue

Wipe dry with a clean, soft cloth

Ensure the following are not used during cleaning

Gently flex the curtain in the center and remove it from the right side

Depress tabs on right and left side of the water trough

Allow front of water trough to drop as you pull forward to disengage the rear pins

Pull the water level probe straight down to disengage

Lower the water level probe until the wiring connector is visible

Mix a solution of Manitowoc ice machine cleaner and water (2 ounces of cleaner to 16 ounces of water) in a container

Clean all probe surfaces including all plastic parts (do not use abrasives)

Thoroughly rinse probes with clean water
