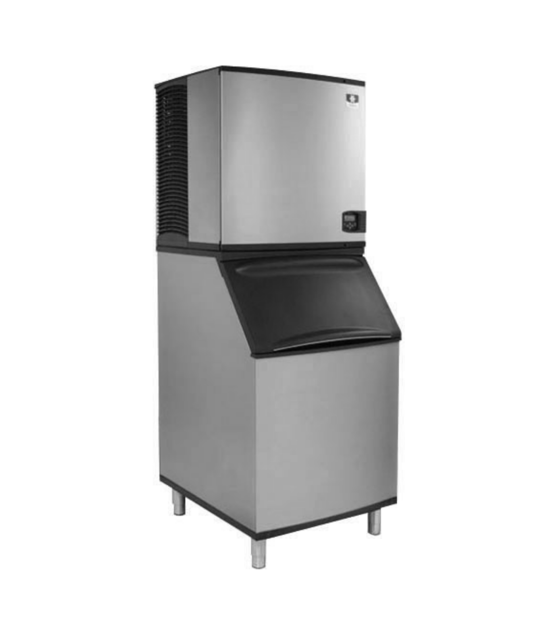

Manitowoc Refrigeration Equipment IY0504A

Ensure the area around the ice machine is clear of obstacles.

Gather cleaning materials: damp cloth, mild dish soap, clean soft cloth.

Wipe surfaces with a damp cloth rinsed in water to remove dust and dirt.

Is there any greasy residue remaining?

If greasy residue persists, use a damp cloth rinsed in a mild dish soap and water solution.

Wipe dry with a clean, soft cloth.

Preparation and Safety Precautions

Ensure safety equipment is worn

Ensure ice machine top cover is removed if necessary

Open the front door to access the evaporator compartment

Select method to remove ice from evaporator

Remove all ice from the bin/dispenser

Press the clean switch and wait for water trough to refill

Mix a solution of Manitowoc ice machine cleaner and water (2 ounces of cleaner to 16 ounces of water) in a container

Clean all probe surfaces including all plastic parts (do not use abrasives)

Thoroughly rinse probes with clean water

Gently flex the curtain in the center and remove it from the right side

Depress tabs on right and left side of the water trough

Allow front of water trough to drop as you pull forward to disengage the rear pins

Pull the water level probe straight down to disengage

Lower the water level probe until the wiring connector is visible

Ensure you have read and understood all labels on the cleaning and sanitizing bottles.

Ensure you are wearing rubber gloves and safety goggles or face shield.

Ensure the ice machine is turned off and unplugged.

Discard all ice produced during the cleaning and sanitizing procedures.

Disassemble the ice machine and bin for cleaning and sanitizing.

Use Manitowoc Ice Machine Cleaner (part number 9405463) to clean the machine.
