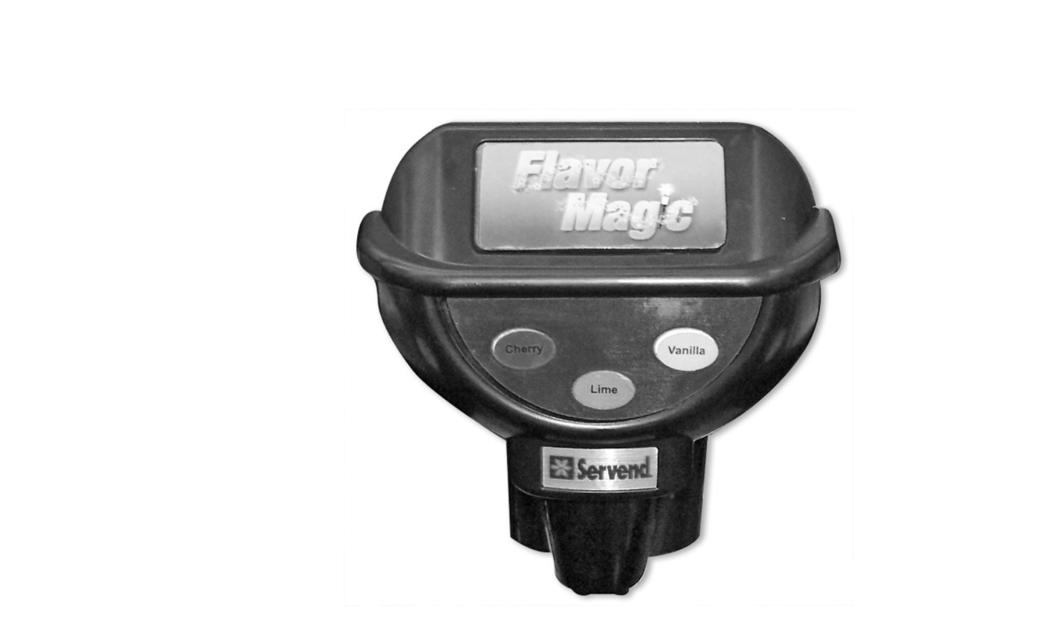

Manitowoc Flavor Magic Module SV-175

Prepare a bucket of warm to hot water

Submerge connector in water until syrup residue is dissolved

Unplug the unit before servicing or cleaning

Fill a small cup with warm to hot water

Immerse the nozzle area fully by drawing the cup up and around the nozzle

Allow syrup to dissolve into the water

Change the water several times to assure the syrup is adequately removed

Ensure you have the following items

Prepare Bucket 1 with warm to hot tap water for rinsing

Prepare Bucket 2 with mild detergent and warm to hot water

Prepare Bucket 3 with a solution of unscented bleach (5% Na CLO) or commercial sanitizer and warm to hot water

Disconnect the syrup-line side of the BIB connector

Rinse connector with warm tap water

Connect syrup connector to BIB connector and immerse both into Bucket 1

Wear rubber gloves and eye protection

Ensure the drain pan is in place under soda valves

Immerse syrup connector in warm water (100°F, 38°C - maximum temperature) to remove syrup residue

Flush sanitizing solution from syrup system

Ensure no residual sanitizing solution is left in the system
