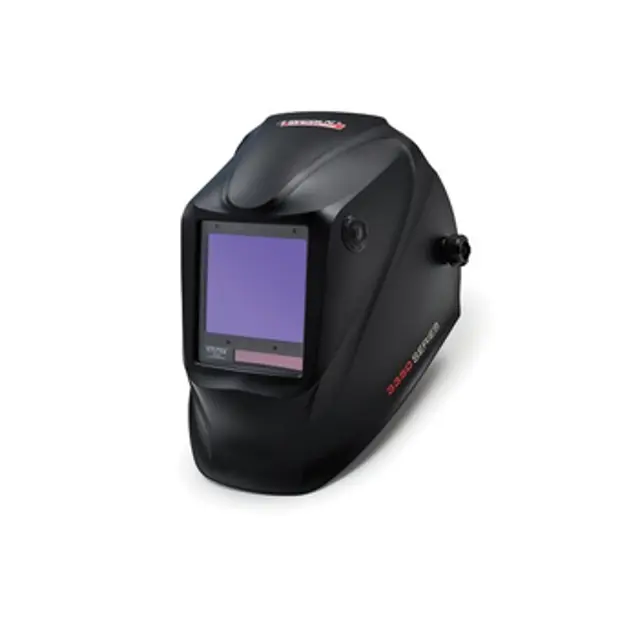

Lincoln Electric Auto darkening helmet VIKING 3350 Series
Create an account to install this asset package.
Maintenance Plans for Lincoln Electric Auto darkening helmet Model VIKING 3350 Series
Integrate maintenance plans directly into your work orders in MaintainX.
Cleaning
- Clean helmet by wiping with a soft cloth. Clean cartridge surfaces regularly. Do not use strong cleaning solutions. Clean sensors and solar cells with soapy water solution and a clean cloth and wipe dry with a lint-free cloth.
Replacement
- Replace the front cover lens if it is damaged. Remove ADF holder assembly. Remove front cover lens from helmet assembly. Carefully remove gasket from cover lens. Install new cover lens into gasket and assemble to helmet shell. Make sure to assemble cover lens and gasket into helmet shell the same way as it was removed
- Replace the inside clear lens if it is damaged. Place your fingernail in recess above cartridge view window and flex lens upwards until it releases from edges of cartridge view window
- Remove ADF holder assembly from helmet shell. Flex bottom end of the ADF holder to allow for ADF cartridge to be removed from frame. Install new ADF cartridge into frame. Make sure that the ADF cartridge is inserted in ADF holder correctly as shown. Install ADF holder assembly into helmet shell.
Parts for Lincoln Electric Auto darkening helmet VIKING 3350 Series
Access the parts list for your equipment in MaintainX.
SWEATBAND
KP2930-1
CHEATER LENS
KP3046-150
OUTSIDE CLEAR LENS SEAL
S27978-32
GRIND BUTTON ASSEMBLY
KP4562-1
OUTSIDE CLEAR LENS
KP2898-1
SWEATBAND
KP2930-1
CHEATER LENS
KP3046-150
OUTSIDE CLEAR LENS SEAL
S27978-32
GRIND BUTTON ASSEMBLY
KP4562-1
OUTSIDE CLEAR LENS
KP2898-1
SWEATBAND
KP2930-1
CHEATER LENS
KP3046-150
OUTSIDE CLEAR LENS SEAL
S27978-32
GRIND BUTTON ASSEMBLY
KP4562-1
OUTSIDE CLEAR LENS
KP2898-1
