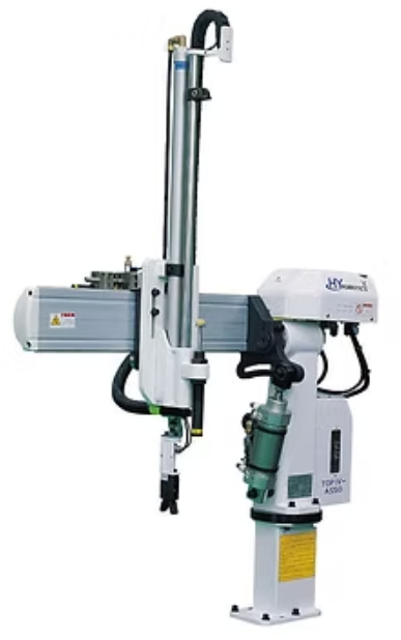

HYRobotics Swing Robot TOPIV-X750

Check EOAT mounting screw for tightness

Check gripper screw for tightness

Fittings and Hardware Inspection

Inspect mounting hardware for tightness

Check the safety latch cylinder for proper operation

Test the Emergency Stop Button for proper functionality

Arm Rotation and Bolt Tightness

Press (M) and (/) at the same time until P1 blinks

Set pressure to -60 kPa using (V) or (/)

Press (M) for more than 1 second to finish setup

Verify that the LED displays the current Vacuum pressure

Turn off Power and depressurize system with air regulator or disconnect air.

Slowly lift Arm up and Pull Safety Latch Pin.

Release Arm to allow it to move Down by gravity.

Loosen the bolt to adjust EOAT location.

Find proper location of EOAT for parts by pushing Shock absorber with Stopper.

Tighten the bolt after adjustment.

Inspecting the filter regulator

Check that the filter regulator is set at the correct pressure

Is the filter clean or replaced as needed?

Check that the solenoid valves are working properly

Replace solenoid valves as needed

Inspect all electrical cables for issues

Enter the air pressure reading (kg/cm² or Pa)

Is the air pressure within the normal range?

Filter Regulator Unit Inspection

Check the bowl for water and contamination

Enter the pressure reading from the filter regulator unit

Check hoses and cables for issues

Were any hoses or cables replaced?
