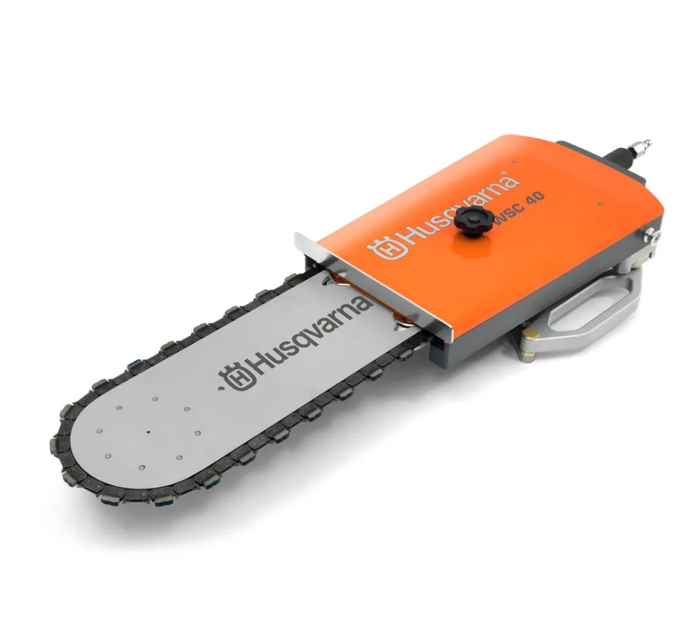

Husqvarna Wall Saw Chain Attachment WSC40

Need answers fast?
Explore the manual using AI.

Husqvarna Wall Saw Chain Attachment WSC40
Husqvarna Wall Saw Chain Attachment WSC40

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Husqvarna Wall Saw Chain Attachment WSC40

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Husqvarna Wall Saw Chain Attachment WSC40

Husqvarna Wall Saw Chain Attachment WSC40

Create an account to install this asset package.

Maintenance Plans for Husqvarna Wall Saw Chain Attachment Model WSC40

Integrate maintenance plans directly into your work orders in MaintainX.

Bar / Chain Replacement

Check mark

Dismantling

Check mark

Dismantle the bar and chain according to the instructions given in chapter 6.2 step 1 - 12

Check mark

Replacement

Check mark

Replace the worn bar and chain with new ones

Check mark

Greasing

Check mark

Add grease in the centre hole at the tip of the bar

Check mark

Pump until new grease enters between the nose wheel teeth

Check mark

Rotate the chain a couple of laps to even out the grease

Check mark

Assembly

Run this procedureArrow right

Inlet Pipe For Cooling Water Replacement

Check mark

Dismantling the Gear Box

Check mark

Dismantle the gear box from the saw adaptor according to the instructions given in chapter 6.2 and 6.3.

Check mark

Unscrew all M6-screws holding the gear box plate in position, and remove the gear box plate.

Check mark

Clean the screw heads thoroughly from dust and debris.

Check mark

Removing the Inlet Pipe

Check mark

Attach the pin wrench to the Chain tension adjustment knob (A).

Check mark

Attach a regular wrench to the water hose connection (B).

Check mark

Use the pin wrench to screw the chain tension adjustment knob until it locks together with the water hose connection.

Check mark

Use the regular wrench on the water hose connection to remove the inlet pipe from the gear box.

Run this procedureArrow right

Gear Box Seating Outer Side Replacement

Check mark

Dismantle the saw adaptor

Check mark

Unscrew the attachment screws

Check mark

Replace the outer sides with new ones

Check mark

Check that all tools are accounted for

Check mark

Test the gear box functionality

Check mark

Clean the work area

Run this procedureArrow right

Bearing Replacement

Check mark

Dismantling and Preparation

Check mark

Dismantle components according to manual

Check mark

Unscrew and remove the oil plug using an Allen key

Check mark

Turn the gear box upside down to drain the oil of the gear box

Check mark

Collect drained oil in a suitable container

Check mark

Opening the Gear Box Housing

Check mark

Turn the gear box upside down and place it on a solid support with the drive wheel-side facing down

Check mark

Unscrew all the M6 mounting screws using an Allen key

Check mark

Flush cold water through the water inlet pipe

Run this procedureArrow right

Drive Wheel Replacement

Check mark

Dismount the gear box

Check mark

Fix the pivoting arm cradle firmly in a vice

Check mark

Fit the gear box on the pivoting arm cradle with the drive wheel facing up

Check mark

Knock the head of the centre bolt in the drive wheel slightly

Check mark

Unscrew the centre bolt of the drive wheel fully

Check mark

Detach the clamping washer and the drive sprocket

Check mark

Replace the worn drive sprocket and clamping washer with new ones

Check mark

Lubricate the countersunk area on the screws with grease

Check mark

Tighten the screws with the appropriate torque

Run this procedureArrow right

Parts for Husqvarna Wall Saw Chain Attachment WSC40

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Grease Gun

531 11 91-08

Allen Key 5Mm

582 26 24-01

T-Wrench 13Mm

582 26 23-01

Pivoting Arm Cradle

522 90 84-01

Pin Wrench

C-C 30mm

Grease Gun

531 11 91-08

Allen Key 5Mm

582 26 24-01

T-Wrench 13Mm

582 26 23-01

Pivoting Arm Cradle

522 90 84-01

Pin Wrench

C-C 30mm

Grease Gun

531 11 91-08

Allen Key 5Mm

582 26 24-01

T-Wrench 13Mm

582 26 23-01

Pivoting Arm Cradle

522 90 84-01

Pin Wrench

C-C 30mm
