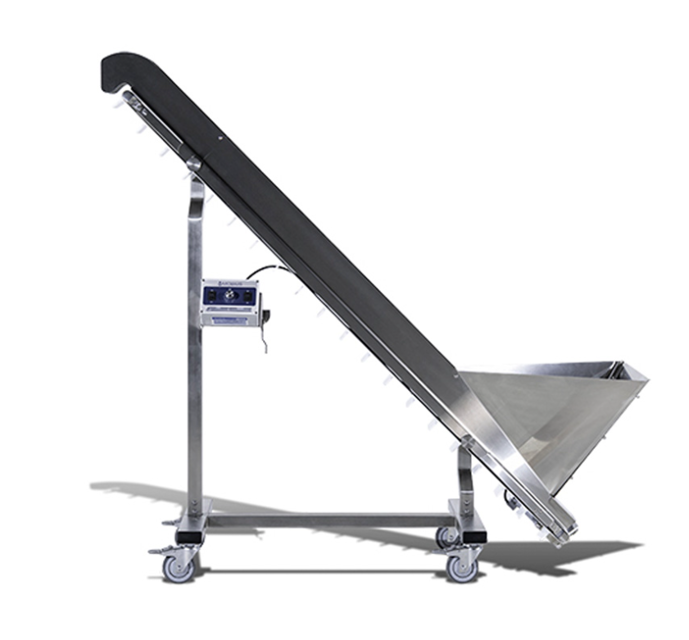

Mobius Trimmer Conveyor AUTOFEED CONVEYOR

Ensure the following parts are removed

Remove the 4 bolts securing the motor to the conveyor using a 6mm hex key

Slide the entire motor off the drive shaft and set aside

Remove the 4 bolts securing the motor assembly to the conveyor body using a 9/64 hex key

Remove the motor and set aside in a safe place

Slide the entire motor assembly out of the conveyor body, wiggling if necessary

Flip the power switch to the OFF position and disconnect the power cord.

Remove the belt from the body of the conveyor.

Soak the belt in diluted degreaser for 5 - 10 minutes.

Use a cloth or soft-bristled brush to remove stubborn soils if necessary.

Rinse the belt thoroughly with warm or hot water (maximum 55°C/130°F) and allow to dry.

Apply a sanitizer if necessary as part of your sanitation SOP.

Grab the handles on the HOPPER, and lift it off the conveyor

Use the TENSIONING TOOL to turn the BELT TENSIONING STUB clockwise until significant resistance is felt

Slide the belt off the side of the conveyor once there is enough slack

Check that all tools are accounted for

Ensure the area is clean and free of debris

Use the conveyor tensioning tool to remove tension from the belt

Slide the belt off and set aside

Using a 9/64 Allen key, undo the two screws that secure the tensioning assembly to the body of the conveyor

Grab onto the roller and slide the tensioning assembly right out of the conveyor
