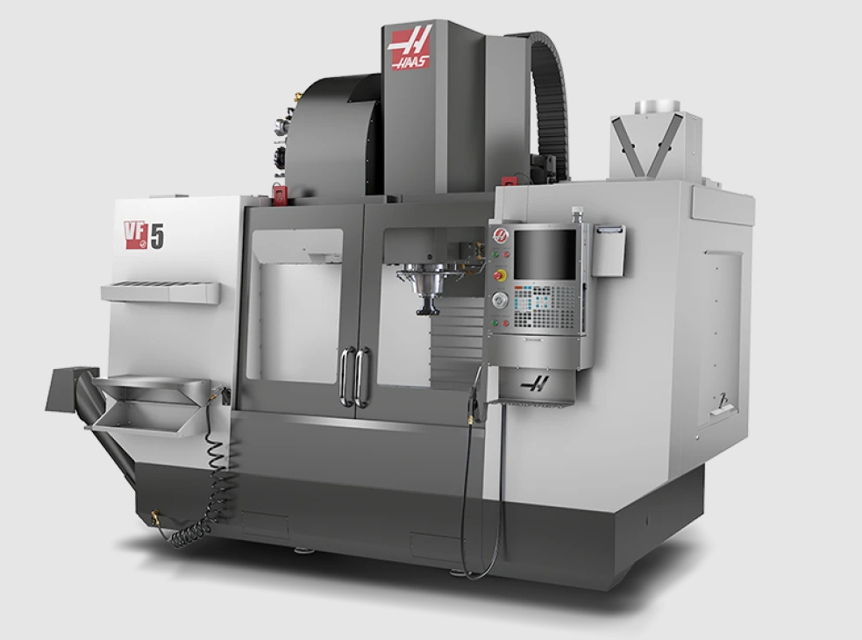

Haas Automation CNC Vertical Machining Center VF-5/40

TURN OFF power to the machine at the main breaker.

Remove the retainer and the light lens.

Remove the light bulb and replace.

Replace the light lens and retainer.

40 taper spindles: Oil level check

40 taper spindles: Amount of oil added

50 taper spindles: Oil level check

50 taper spindles: Amount of oil added

Way Covers Inspection and Lubrication

Tool Changer Guide Rails Lubrication

Check way lube lubrication tank level

Clean chips from way covers and bottom pan

Wipe spindle taper with a clean cloth rag and apply light oil

Sign off on the daily CNC vertical machining center maintenance

Drained oil from the bottom of the gearbox?

Removed inspection cover beneath spindle head?

Added oil slowly from top until oil begins dripping from overflow tube at bottom of sump tank?

For 50 taper spindles, added oil from the side of the transmission?

Checked oil filter and cleaned out residue at bottom of filter?

Replaced air filter on control box?

Check Through the Spindle Coolant (TSC) filters. Clean or replace element if needed.

Check for proper operation of auto drain on filter regulator.

On machines with the TSC option, clean the chip basket on the coolant tank. Remove the tank cover and remove any sediment inside the tank. Be careful to disconnect the coolant pump from the controller and POWER OFF the control before working on the coolant tank. Do this MONTHLY for machines without the TSC option.

Check air gauge/regulator for 85 psi. For 15K-spindle machines, check spindle air pressure regulator for 20 psi.

For machines with the TSC option, place a dab of grease on the V-flange of tools. Do this MONTHLY for machines without the TSC option.

Clean exterior surfaces with mild cleaner. DO NOT use solvents.

Check the hydraulic counterbalance pressure according to the machines specifications.;
