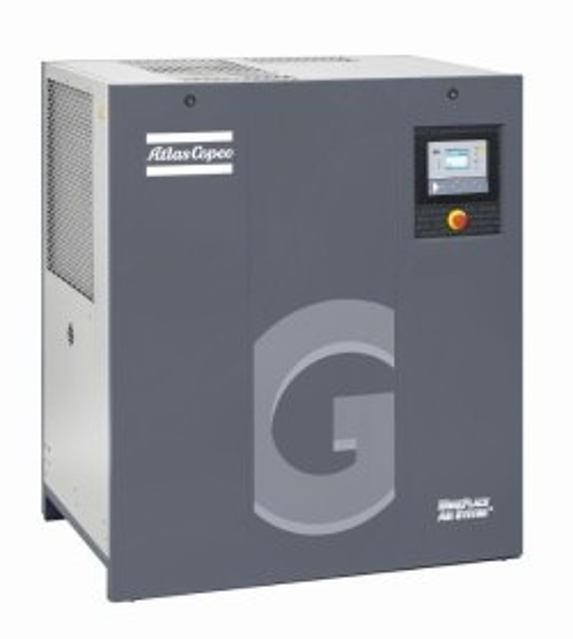

Atlas Copco Stationary Air Compressor GA30 VSD 400V+N

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Stationary Air Compressor Model GA30 VSD 400V+N

Integrate maintenance plans directly into your work orders in MaintainX.

4000 Hourly Oil Change

Compressor warmed up

Compressor stopped and emergency stop button pressed

Air outlet valve closed

Manual drain valves opened

Compressor depressurized

Oil filler plug unscrewed one turn

Vent plug removed

Oil drained and collected

Drain plugs fitted and tightened after draining

Run this procedure

4000 Hourly Coolers Cleaning

Warning: Always wear protective gear while cleaning the coolers.

Are the side panels removed?

Removal of dirt from the coolers with a fibre brush

Cleaning by air jet in reverse direction of normal flow

Are the side panels refitted?

Sign off on the cooler cleaning

Run this procedure

4000 Hourly Stationary Air Compressor Maintenance

Maintenance Procedure

Change oil and oil filter every 1000 Hours if Mineral oil is used

Pressure reading

Temperature reading

LED/display test

Check for possible air or oil leakage

Remove, dismantle and clean float valve of condensate trap

Check blow-off solenoid valve (Y1) after stopping and pressing the emergency stop button

Test temperature shut-down function

Run this procedure

4000 Hourly Safety Valve Testing

Warning: Only trained personnel should perform this test

Safety valve operational after unscrewing and retightening the cap?

Choose the method of testing

Enter the pressure at which the valve opened

If the valve does not open at the specified pressure, consult Atlas Copco. No adjustments are allowed

Sign off on the safety valve test

Run this procedure

4000 Hourly Drive Motor Bearing Greasing

The correct type of grease can be ordered from Atlas Copco

The bearings must be regreased with KLÜBERQUIET BOH 72 - 102. Quantity: 24 g per bearing

Loosen palm grip, lift nozzle and turn it 90 degrees clockwise (automatic operation pictograph covered and grease pump pictograph visible)

Tighten the palm grip. Run the Regreasing program from the Test submenu on the regulator

When the regreasing program has finished, loosen the palm grip, lift the nozzle and turn it back into its original position (grease pump pictograph covered and automatic operation pictograph visible), tighten the palm grip

During the Regreasing program, the compressor will run for 30 minutes at minimum speed

The compressed air is blown off via the solenoid valve

The compressor can be put into operation again by pressing the start button. Reset the regulator

Sign off on the motor bearing greasing

Run this procedure
