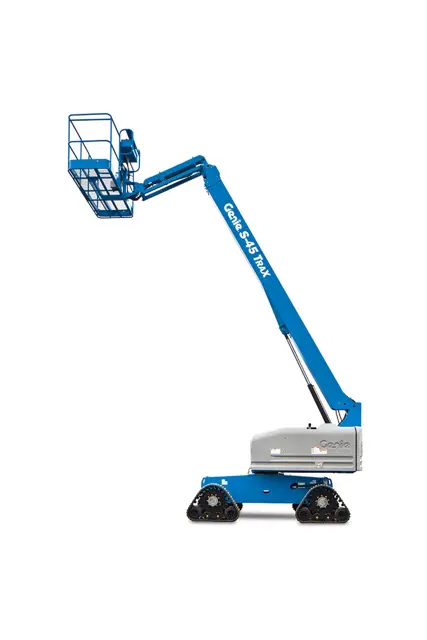

Genie Genie Articulated Boom Lift S-45 TraX S-45 TraX

Check for leaks Oil, fuel and coolant systems

Clean Air filter discharge valve

Warning: This procedure requires trained personnel with PPE!

Perform this procedure with the machine on a firm, level surface with the boom in the stowed position

Torque the turntable bearing bolts to specification

Raise the boom to full height using the ground controls

Place a dial indicator between the drive chassis and the turntable at a point that is directly under, or inline with, the boom and no more than 1 inch / 2.5 cm from the bearing

Adjust the dial indicator needle to the 'zero' position

Lower the boom to a horizontal position and fully extend the boom

Warning: This procedure applies to the following models: S-100, S-100HD, S-105, S-120, S-120HD, S-125, SX-105 XC, SX-125 XC, SX-135 XC, SX-150, SX-180, Z-80/60, Z-135/70 and Zx-135/70

There are two key switches on the machine - the Main key switch and the Bypass/Recovery key switch

Perform this procedure on a firm, level surface with the machine in the stowed position

Open the ground controls side turntable side cover

Pull out the red Emergency Stop button to the on position at both the ground and platform controls

At the ground controls, turn the bypass/recovery key switch to the run position

Turn the main key switch to ground control, start the engine and then turn the key switch to platform control

Check any machine function from the ground controls. The machine functions should not operate

Turn the main key switch to ground control

Clean/replace air cleaner element

Sign off on the daily maintenance
