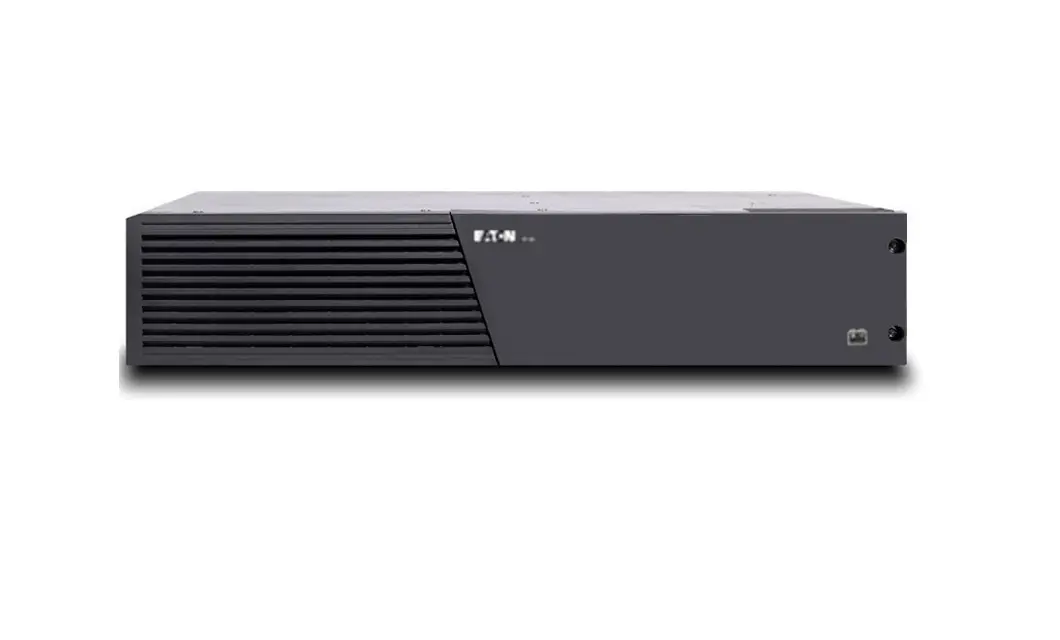

The Eaton Uninterruptible Power System PW9130N1000R-EBM2U is a reliable industrial UPS designed to provide uninterrupted power and protect critical equipment. With advanced features and robust performance, this model ensures operational continuity and safeguards against power disturbances. Ideal for various applications, it is essential for maintaining system integrity in demanding environments.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Eaton Uninterruptible Power System PW9130N1000R-EBM2U

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Eaton Uninterruptible Power System PW9130N1000R-EBM2U

Create an account to install this asset package.

Maintenance Plans for Eaton Uninterruptible Power System Model PW9130N1000R-EBM2U

Integrate maintenance plans directly into your work orders in MaintainX.

6 Month Battery Service

Warning: Only trained personnel should perform this procedure

Is the UPS connected to utility power?

Recharge the battery

Enter the battery recharge date from the shipping carton label

Sign off on the battery service

Run this procedure

New Battery Testing

Warning: Ensure the UPS is unplugged before starting the procedure

Enter the date when the UPS was plugged in for charging

Did the UPS charge for 48 hours?

Was the menu option activated by pressing any button?

Was CONTROL then START BATTERY TEST selected?

Did the UPS start a battery test?

Did the UPS transfer to Battery mode and discharge the batteries for 25 seconds?

Did the front panel display “Battery test running” and the percentage of the test completed?

Sign off on the new battery testing

Run this procedure

5 Year EBM Batteries Replacement

Replacing Rackmount EBMs

- Remove the front cover of each EBM

- Unplug the EBM cable from the UPS. If additional EBMs are installed, unplug the EBM cable from the battery connector on each EBM

- If not already installed, install the supplied mounting brackets on the new EBM(s)

- Replace the EBM(s)

- Remove the front cover of each new EBM. To remove the cover, remove and retain the two screws on the right side of the cover. Grasp the sides of the cover and slide the cover to the left and then away from the cabinet

- For the bottom (or only) EBM, remove the EBM cable knockout on the top of the cover

- If you are installing more than one new EBM, for each additional EBM remove the EBM cable knockout on the top and bottom of the EBM front cover

- Plug the new EBM(s) into the UPS

Run this procedure
