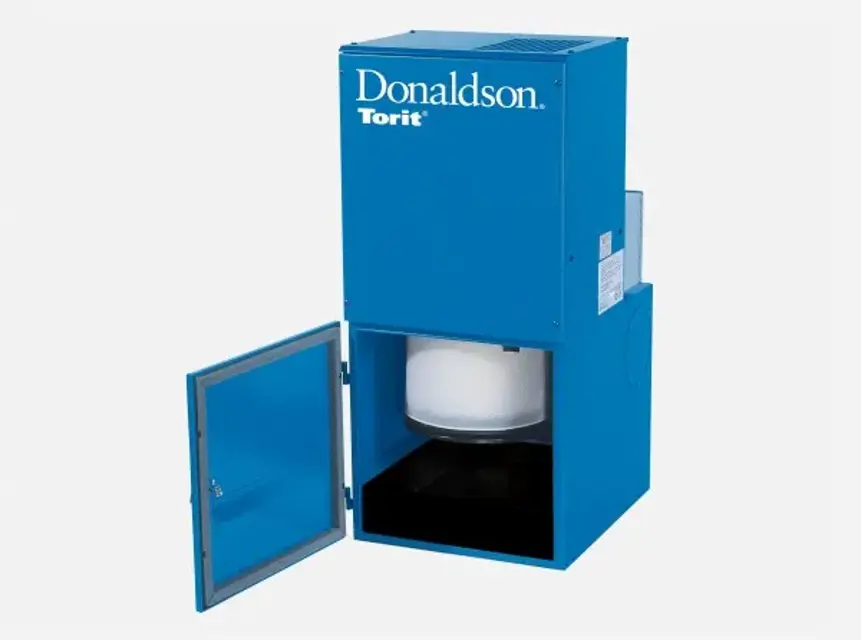

Donaldson Shaker Dust Collector VS 550

Collector shut OFF prior to emptying the dust container

Dust container emptied when 2/3 full

Gasket under the container cover checked for integrity

Gasket replaced if worn or damaged

Slide gate closed before servicing the container

WARNING: Sharp edge of slide gate may result in personal injury while closing the slide gate. Keep hands clear when operating the slide gate.

Dust container replaced or reinstalled, reclamped to the collector, and slide gate opened (if applicable)

NOTICE: To avoid possible damage to the fan motor, maintain a seal below the collector if servicing the dust storage device while the fan is running.

Most dusts present safety and health hazards that require precautions. Wear eye, respiratory, head, and other protection equipment suitable for the type of dust.

Use proper safety and protective equipment when removing contaminants and filters.

Dirty filters may be heavier than they appear. Use appropriate lifting methods to avoid personal injury and/or property damage.

Turn all power OFF and lock out all power before performing service or maintenance work.

Do not operate with missing or damaged filters.

1. Turn all power to collector OFF.

During service activities, there is some potential for exposure to the dust in the collector. Most dusts present safety and health hazards that require precautions. Wear eye, respiratory, head, and other protection equipment suitable for the type of dust when performing any service activities.

Use appropriate access equipment and procedures.

LOCK-OUT all energy sources prior to performing any service or maintenance on the equipment.

Electrical service or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes.

1. Monitor the physical condition of the collector and repair or replace any damaged components.

Routine inspections will minimize downtime and maintain optimum system performance. This is particularly important on continuous-duty applications.

2. Monitor pressure drop across filters.

Abnormal changes in pressure drop may indicate a change in operating conditions and possibly a fault to be corrected.
