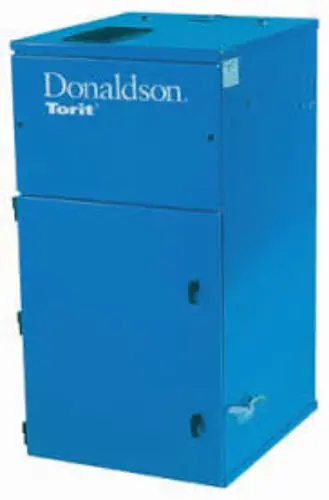

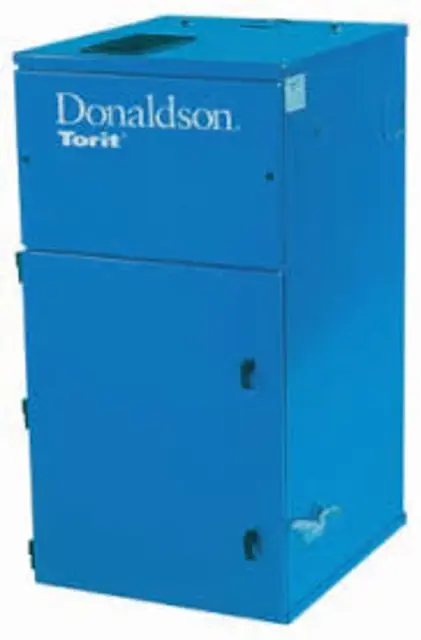

Donaldson Cabinet Collector 80 CAB

Warning: This procedure requires trained personnel with PPE!

Upload a photo of the non-combustible cloth placed over the filters

Enter the diameter of the drill bit used

Eight holes drilled in the collector top as shown

Attenuator assembly positioned and holes aligned

Number of 1/4-20 thread-cutting screws used to fasten the attenuator assembly

Cloth protecting the filters carefully removed

Top door assembly replaced and tightened securely by hand

Instruct all personnel on safe use and maintenance procedures.

Use proper equipment and adopt all safety precautions needed for servicing equipment.

Use appropriate access equipment and procedures. Note the standard collector is not equipped with access platforms unless noted on the specification drawings.

Electrical service or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes.

Turn power off and lock out electrical power sources before performing service or maintenance work.

Do not install in classified hazardous atmospheres without an enclosure rated for the application.

1. Monitor the physical condition of the collector and repair or replace any damaged components.

Routine inspections will minimize downtime and maintain optimum system performance. This is particularly important on continuous-duty applications.

Apply sealant to the hopper flange or the pail cover mounting plate flange toward the inside edge of the bolt pattern

Fasten the pail pack to the hopper using the bolts, washers, and nuts supplied

Place pail beneath seater mechanism

Tighten clamps on either side by pulling down

Top door assembly removed and set aside

Non-combustible cloth placed over the filters in the clean-air chamber

Eight holes drilled using a .218-inch diameter drill bit

Outdoor exhaust deflector positioned on the cabinet top, holes aligned, and fastened using eight #10-24 x 1/2-inch bolts, washers, and nuts. Bolts tightened securely.

Sealant applied around the outside edge of the exhaust deflector

Cloth protecting the filters carefully removed. Top door assembly replaced and tightened securely by hand.

Sign off on the outdoor exhaust deflector installation

Warning: Ensure you are wearing appropriate safety equipment before starting the procedure.

Non-combustible cloth placed over the filters

Eight holes drilled in the collector top with a .116-inch diameter drill bit

Exhaust silencer positioned and aligned with holes

Exhaust silencer fastened securely with #7 x 1/2-inch screws

Cloth protecting the filters carefully removed

Top door assembly replaced and tightened securely by hand

Sign off on the exhaust silencer maintenance
