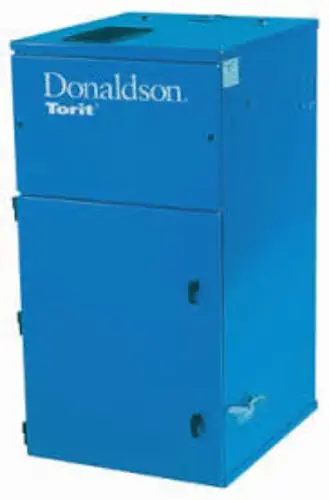

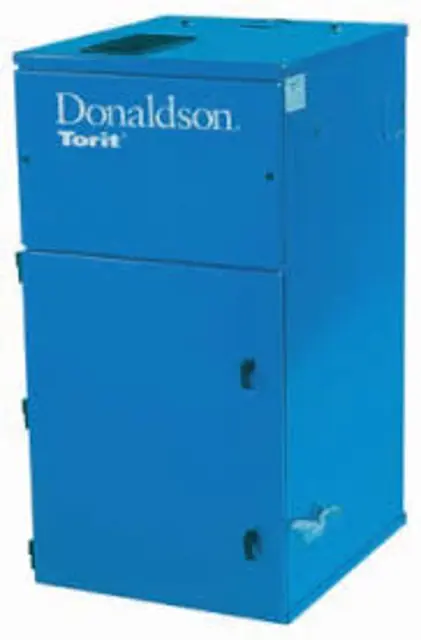

Donaldson Cabinet Collector 50 Cabinet

Place the chamber silencer over the clean-air outlet on top of the collector

Position the silencer flush with the front of the collector and the exhaust opening facing the front

Warning: Ensure you are wearing appropriate safety equipment before starting the procedure.

Upload a photo of the non-combustible cloth placed over the filters

Enter the diameter of the drill bit used

Eight holes drilled in the collector top as shown

Exhaust silencer positioned and holes aligned

Exhaust silencer fastened securely with #7 x 1/2-inch screws

Cloth protecting the filters carefully removed

Top door assembly replaced and tightened securely by hand

The drum pack is designed to fit a customer-supplied, standard 55-gallon drum and provides easy access for dust removal and disposal. A flexible hose connects the drum cover to the hopper. Placing a pallet under the drum allows heavier materials to be moved quickly using a forklift or pallet jack. If a pallet is used, the length of flexible hose may need to be shortened.

Sharp edge of slide gate may result in personal injury while closing the slide gate. Keep hands clear when operating the slide gate.

1. Place the 1/8-inch gasket spacer between the hopper flange and slide gate as shown.

2. Attach the drum pack and slide gate to the hopper flange using 3/8-16 bolts, washers, and hex nuts.

3. Attach the drum cover to the 55-gallon drum.

4. Use latches to secure the cover to the drum, if equipped.

5. Connect the flexible hose between the drum cover and slide gate. Secure with hose clamps.

If the collector is operated with more than the maximum permissible inlet size, the fan motor can overload, or dust can settle in the duct due to low air velocity.

1. Inlet collars can be located on the side, top, or back of the cabinet by removing the desired inlet cover plate and installing the inlet collar using the same screws.

2. Use the shortest possible inlet duct. Avoid the use of tees or flexible, wire-molded duct except where machine motion or vibration needs to be isolated. Flexible duct has a high static pressure and reduces airflow.

3. Size duct for the recommended air velocity of the conveyed material, or material may collect inside the duct.

4. Connect joints with sheet metal screws, rivets, or sealer. Finish each joint with sealer or duct tape.

Note: Sheet metal screws may cause fibrous or stringing particulate to accumulate inside the duct. Use rivets or sealant in these conditions.;

Attach legs and cross bracing to hopper using 3/8-16 x 1-inch bolts, washers, and nuts as shown

Position the hopper and leg assembly on the foundation’s anchor bolts and fasten securely

Apply 1/4-inch diameter rope-type sealant to the hopper’s top flange

Lift cabinet over hopper and leg assembly and lower slowly

Secure with bolts, washers, and nuts supplied

Turned off and locked out all dust collector and ancillary equipment before accessing the inside of the hopper?

Positioned yourself so dust will not hit you when opening the hatch?
