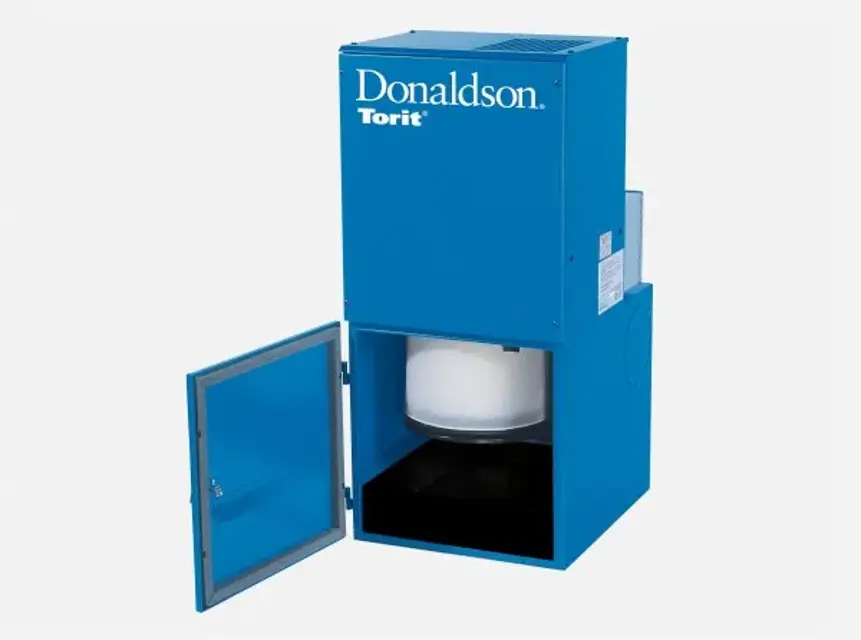

Donaldson Shaker Dust Collector VS-1500

Most dusts present safety and health hazards that require precautions. Wear eye, respiratory, head, and other protection equipment suitable for the type of dust.

Use proper safety and protective equipment when removing contaminants and filters.

Dirty filters may be heavier than they appear. Use appropriate lifting methods to avoid personal injury and/or property damage.

Turn all power OFF and lock out all power before performing service or maintenance work.

Do not operate with missing or damaged filters.

1. Turn all power to collector OFF.

Shut the collector OFF prior to emptying the dust container (bin, pail, or drum)

Transfer dust from the dust container to a suitable disposal site and dispose of dust in accordance with local requirements for the materials being collected

Empty when the dust container is 2/3 full. Check the integrity of the gasket under the container cover. Replace the gasket if worn or damaged

If an optional slide gate is used, close the gate before servicing the container

WARNING: Sharp edge of slide gate may result in personal injury while closing the slide gate. Keep hands clear when operating the slide gate

Replace or reinstall the dust container, reclamp to the collector, and open the slide gate (if applicable)

NOTICE: To avoid possible damage to the fan motor, maintain a seal below the collector if servicing the dust storage device while the fan is running

The collector can now be returned to service

Sign off on the dust disposal procedure

Warning: Wear eye, respiratory, head, and other protection equipment suitable for the type of dust when performing any service activities.

LOCK-OUT all energy sources prior to performing any service or maintenance on the equipment.

Electrical service or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes.

Physical condition of the collector is good

Exhaust is functioning properly

Dust disposal is functioning properly

Sign off on the Shaker Dust Collector Operational Check
