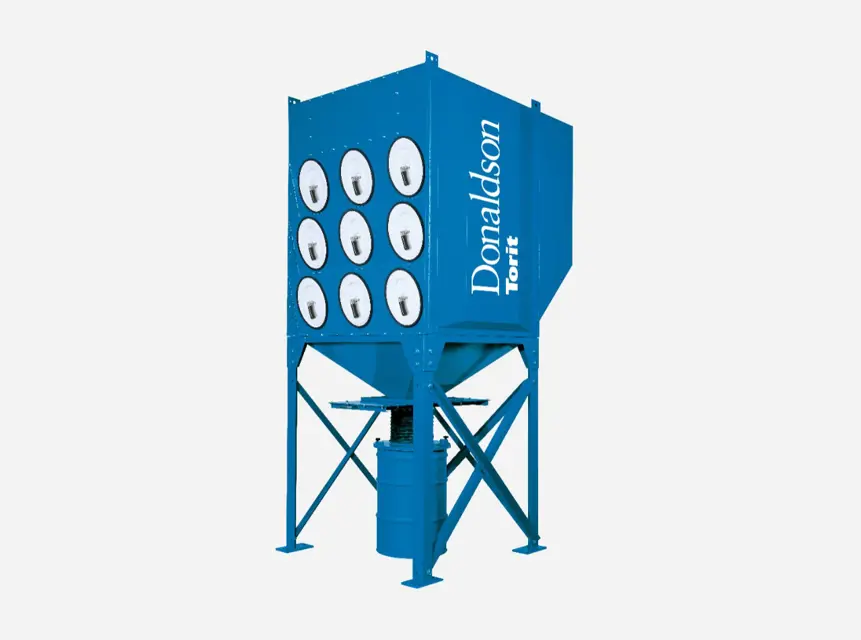

Donaldson Dust Collector DFO 3-6

Instruct all personnel on safe use and maintenance procedures.

Use proper equipment and adopt all safety precautions needed for servicing equipment. Electrical service or maintenance work must be performed by a qualified electrician and comply with all applicable national and local codes.

Turn power off and lock out electrical power sources before performing service or maintenance work.

Do not install in classified hazardous atmospheres without an enclosure rated for the application.

Turn compressed air supply OFF and bleed lines before performing service or maintenance work.

Do not set compressed-air pressure above 60-psig. Component damage can occur.

NOTICE: Do not set compressed-air pressure above 100-psig. Component damage can occur.

Check the compressed air components

Upload a photo of the compressed-air filter

Replace the compressed-air filter

Drain moisture following the manufacturer’s instructions.

Is the compressed-air supply ON?

Empty 55-gallon drum if 2/3 full

Close gate before servicing the drum

Filter Removal and Installation

Use proper safety and protective equipment when removing contaminants and filters.

Dirty filters may be heavier than they appear.

Use care when removing filters to avoid personal injury.

2. Start at the top access port.
