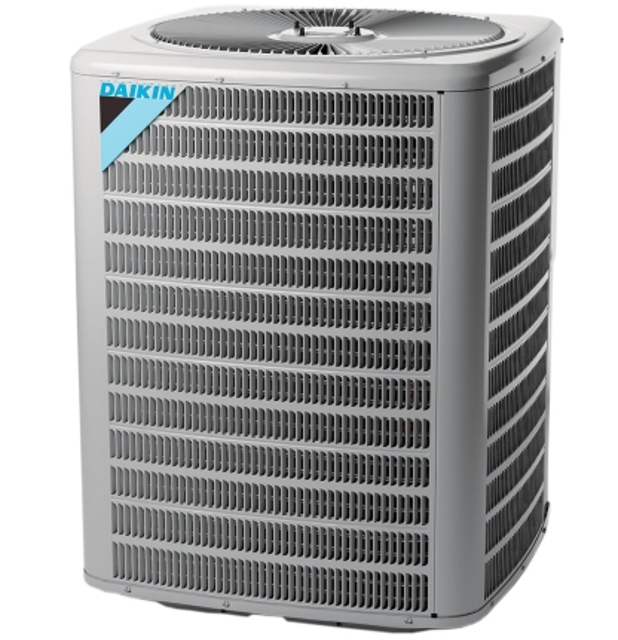

Daikin Split System Heat Pump DZ13SA0483AB

Create an account to install this asset package.

Maintenance Plans for Daikin Split System Heat Pump Model DZ13SA0483AB

Integrate maintenance plans directly into your work orders in MaintainX.

Heater Fuse Link Check

WARNING: Disconnect ALL power before servicing.

Heater element assembly removed to expose fuse link

Continuity test across the fuse link performed with an ohmmeter

Fuse link is not open

Reason for fuse link failure

Sign off on the heater fuse link check

Run this procedure

Expansion Valve Operation Check

Warning: This procedure should be performed by trained personnel only.

Remote bulb of the expansion valve removed from the suction line

System started and bulb cooled in a container of ice water

Suction pressure after cooling the bulb

Suction temperature after cooling the bulb

Bulb warmed in hand

Suction pressure after warming the bulb

Suction temperature after warming the bulb

Result of the operation check

Run this procedure

Reversing Valve / Solenoid Check

Warning: This procedure requires trained personnel with PPE!

Reversing valve stuck in mid-position?

Measure the suction line temperature through the reversing valve

Operation of the valve changes from COOLING to HEATING cycle?

Measure the voltage at the valve coil terminals during COOLING cycle

Voltage registered at the coil terminals?

Operation of the thermostat checked?

Continuity of the connecting wiring from the “O” terminal of the thermostat to the unit checked?

Sign off on the Reversing Valve / Solenoid Check

Run this procedure

Capacitor Check

Warning: This procedure requires trained personnel with PPE!

Run capacitor wired across the auxiliary and main windings?

Measure the line current

Is the torque characteristics of the motor improved?

Is the line side of the capacitor marked with 'COM'?

Is the capacitor wired to the line side of the circuit?

Is the hard start kit approved by Amana® brand or Copeland?

Is the discharge check valve closing off high side pressure to the compressor after shut down?

Is the compressor equalizing through the scroll flanks?

Run this procedure

Fan Relay Contact Check

WARNING: HIGH VOLTAGE! Disconnect ALL power before servicing or installing. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death.

Disconnect wire leads from terminals 2 and 4 of Fan Relay Cooling and 2 and 4, 5 and 6 of Fan Relay Heating.

Using an ohmmeter, test between 2 and 4 - should read open. Test between 5 and 6 - should read continuous.

WARNING: Line Voltage now present.

With power ON, energize the relays.

Using an ohmmeter, test between 2 and 4 - should read continuous . Test between 5 and 6 - should read open.

If not as above, replace the relay.

Sign off on the Fan Relay Contact Check

Run this procedure
