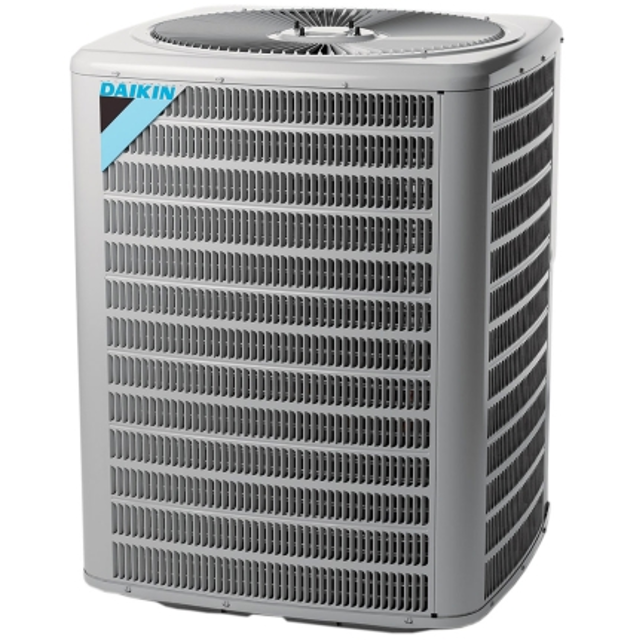

Daikin Condensing Unit DX11SA0903AB

Need answers fast?
Explore the manual using AI.

Daikin Condensing Unit DX11SA0903AB
Daikin Condensing Unit DX11SA0903AB

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Condensing Unit DX11SA0903AB

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Condensing Unit DX11SA0903AB

Daikin Condensing Unit DX11SA0903AB

Create an account to install this asset package.

Maintenance Plans for Daikin Condensing Unit Model DX11SA0903AB

Integrate maintenance plans directly into your work orders in MaintainX.

Contactor Contact Check

Check mark

WARNING: Disconnect ALL power before servicing.

Check mark

SINGLE PHASE:

Check mark

1. Disconnect the wire leads from the terminal (T) side of the contactor.

Check mark

2. With power ON, energize the contactor.

Check mark

WARNING: Line Voltage now present.

Check mark

3. Using a voltmeter, test across terminals.

Check mark

A. L2 - T1 - No voltage indicates CC1 contacts open.

Check mark

If a no voltage reading is obtained - replace the contactor.

Check mark

THREE PHASE

Run this procedureArrow right

Operation Test

Check mark

WARNING: HIGH VOLTAGE! Disconnect ALL power before servicing or installing. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death.

Check mark

Voltage test passed

Check mark

Capacitor test passed

Check mark

Overload test passed

Check mark

Motor winding test passed

Check mark

If all tests fail, proceed with the following steps:

Check mark

Unit wiring removed from disconnect switch and test cord wired to the disconnect switch

Check mark

NOTE: The wire size of the test cord must equal the line wire size and the fuse must be of the proper size and type.

Check mark

Protective terminal cover in place and three leads connected to the compressor terminals

Run this procedureArrow right

Contactor And/Or Relays Check

Check mark

WARNING: HIGH VOLTAGE! Disconnect ALL power before servicing or installing. Multiple power sources may be present. Failure to do so may cause property damage, personal injury or death.

Check mark

The compressor contactor and other relay holding coils are wired into the low or line voltage circuits. When the control circuit is energized, the coil pulls in the normally open contacts or opens the normally closed contacts. When the coil is de-energized, springs return the contacts to their normal position.

Check mark

NOTE: Most single phase contactors break only one side of the line (L1), leaving 115 volts to ground present at most internal components.

Check mark

Power disconnected?

Check mark

Leads removed from the holding coil?

Check mark

Ohmmeter reading across the coil terminals

Check mark

Coil tests continuous?

Check mark

Relay or contactor replaced if coil does not test continuous?

Check mark

Sign off on the contactor and/or relays check

Run this procedureArrow right

Aluminum Coil Cleaning

Check mark

This unit is equipped with an aluminum tube evaporator coil.

Check mark

The safest way to clean the evaporator coil is to simply flush the coil with water. This cleaning practice remains as the recommended cleaning method for both copper tube and aluminum tube residential cooling coils.

Check mark

An alternate cleaning method is to use one of the products listed in the technical publication TP-109 (shipped in the literature bag with the unit) to clean the coils. The cleaners listed are the only agents deemed safe and approved for use to clean round tube aluminum coils. TP-109 is available on the web site in Partner Link > Service Toolkit.

Check mark

Was the coil flushed with water?

Check mark

Select the cleaning method used

Check mark

Upload a photo of the cleaned coil

Check mark

NOTE: Ensure coils are rinsed well after use of any chemical cleaners.

Check mark

Sign off on the coil cleaning

Run this procedureArrow right

Voltage Check

Check mark

Remove outer case, control panel cover, etc., from unit being tested. WARNING: Line Voltage now present.

Check mark

Measure the voltage across terminals L1 and L2 of the contactor for the condensing unit or at the field connections for the air handler or heaters.

Check mark

No reading - indicates open wiring, open fuse(s) no power or etc., from unit to fused disconnect service. Repair as needed.

Check mark

With ample voltage at line voltage connectors, energize the unit.

Check mark

Measure the voltage with the unit starting and operating, and determine the unit Locked Rotor Voltage.

Check mark

Locked Rotor Voltage is the actual voltage available at the compressor during starting, locked rotor, or a stalled condition. Measured voltage should be above minimum listed in chart below.

Check mark

To measure Locked Rotor Voltage attach a voltmeter to the run 'R' and common 'C' terminals of the compressor, or to the T1 and T2 terminals of the contactor. Start the unit and allow the compressor to run for several seconds, then shut down the unit. Immediately attempt to restart the unit while measuring the Locked Rotor Voltage.

Check mark

Locked rotor voltage should read within the voltage tabulation as shown. If the voltage falls below the minimum voltage, check the line wire size.

Check mark

Long runs of undersized wire can cause low voltage. If wire size is adequate, notify the local power company in regard to either low or high voltage.

Run this procedureArrow right
