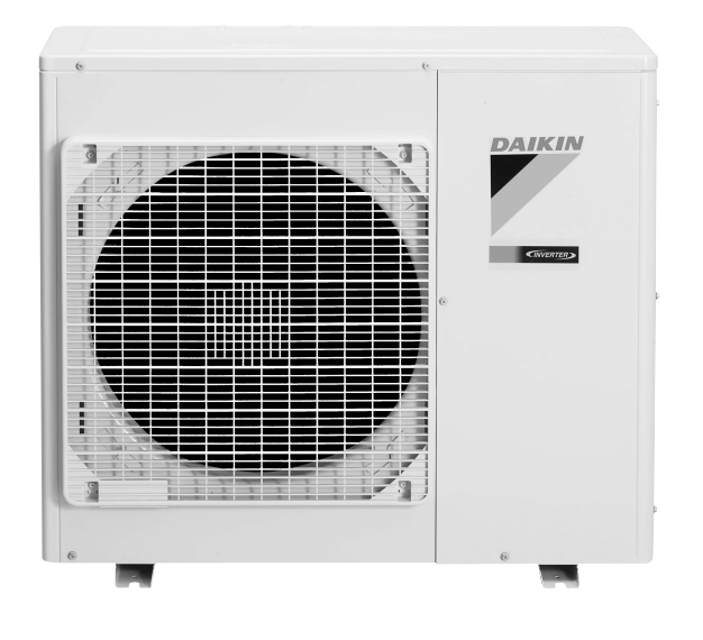

Daikin Outdoor Heat Pump RXS71KAVMA

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RXS71KAVMA

Integrate maintenance plans directly into your work orders in MaintainX.

Electrical Box Removal

Remove the screw on the stop valve mounting plate

Remove the screw on the partition plate (1)

Remove the 2 screws to detach the earth wires

Disconnect the connector for the fan motor [S70]

Release the fan motor lead wire from the 5 hooks

When reassembling, do not use these 2 hooks

Disconnect the connectors of the front side

[S20]: electronic expansion valve coil, [S40]: overload protector, [S80]: four way valve coil, [S90]: thermistors

The compressor lead wire is fixed on the partition plate (1) with a clamp

Run this procedure

Outer Panel Removal

Features

Remove the suction grille

Remove the top panel

Remove the right side panel

Remove the front panel (2)

Remove the front panel (1)

Remove the rear panel

Sign off on the outer panel removal

Run this procedure

Sound Blanket Removal

Open the sound blanket (outer)

Remove the sound blanket (top upper)

The sound blanket is fragile. Carefully pass the discharge pipe through it

Remove the screw and slightly push the partition plate (1) to the left for easy work

Remove the sound blanket (outer)

Remove the sound blanket (top lower)

The sound blanket is fragile. Carefully pass the discharge pipe through it

Open the sound blanket (inner)

The sound blanket is fragile. Be careful of the notches of the compressor mount (3 locations)

Run this procedure

PCB Removal

Preparation: Remove the electrical box according to the 'Removal of Electrical Box'

Disconnect the connectors [S52] [S102] from the service monitor PCB

Detach the 4 clamps with pliers and remove the service monitor PCB

Remove the screws of the terminal board and the earth wire

Remove the selective connector for standby electricity saving

Be careful not to lose the connector

Unfasten the hook on the right

Open the terminal board

Disconnect the harnesses

Run this procedure

Compressor Removal

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Remove the terminal cover.

Pull out the 3 lead wires. U: red, V: yellow, W: blue

Remove the overload protector (OL).

Before working, make sure that the refrigerant gas is empty in the circuit.

Be sure to apply nitrogen replacement when heating up the brazed part.

Run this procedure
