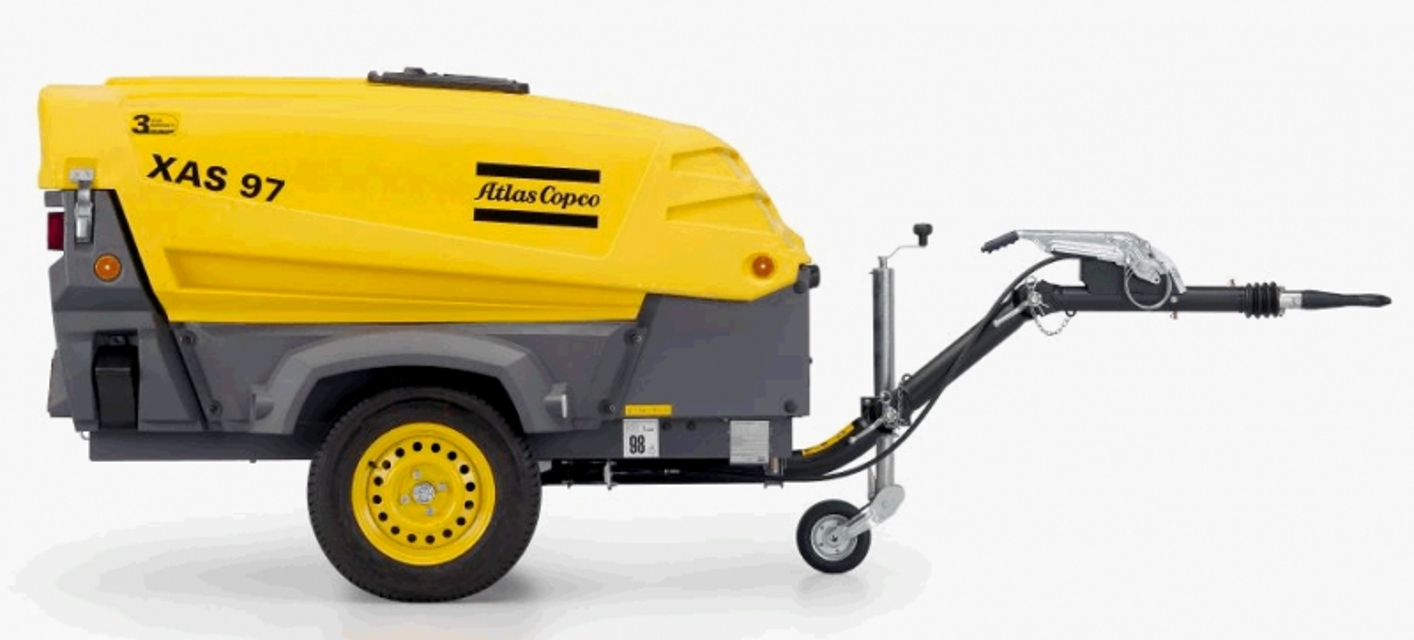

Atlas Copco Portable Compressor XAS 97 DD

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Portable Compressor Model XAS 97 DD

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hourly / 1 Yearly Cooler Cleainng

Keep the coolers clean to maintain the cooling efficiency. Front cooler baffle is removable for access by unscrewing 4 bolts.

Remove any dirt from the coolers with a fiber brush. Never use a wire brush or metal objects.

When cleaning by air jet, blow air through the cooler in reverse direction of normal flow.

If the dirt is oily, wash the coolers with degreaser or a cleansing agent.

Protect the electrical and controlling equipment, air filters etc. against penetration of moisture.

A spray gun should preferably be used to apply the solvent to the fins. Rinse the blocks by means of a water jet max. 100 psi at 2 inch distance after a soaking-in period. Steam cleaning may also be applied.

To avoid damaging the coolers, angle between waterjet and coolers should be approx. 90o.

Never leave spilled liquids such as fuel, oil, water and cleansing agents in or around the compressor.

Sign off on the cooler cleaning

Run this procedure

500 Hourly / 1 Yearly Portable Compressor Maintenance

Check Tyre pressure

Check Leaks in air-, oil- or fuel system

Check Engine minimum and maximum speeds

Check Torque of wheel nuts

Check/Adjust Brake system (if installed)

Grease Joints of height adjustment adjustable towbar

Grease Door hinges

Grease Coupling head and all its moving parts / shaft

Check Shutdown switches

Run this procedure

1 Daily Compressor Oil Level Check

WARNING! Before removing oil filler plug, ensure that the pressure is released by opening an air outlet valve

Is the unit standing level with engine stopped?

Does the pointer of the oil level gauge (OLG) register in the upper extremity of the green range?

Is it necessary to add oil via the oil fill plug (FP)?

Sign off on the daily compressor oil level check

Run this procedure

Initial 50 Hours Portable Compressor Maintenance

Check Electrolyte level of battery

Check if battery terminals are clean and tight

Check Tyre pressure

Check for leaks in air-, oil- or fuel system

Check Engine minimum speed

Check Engine maximum speed

Check Torque of wheel nuts

Check/Adjust Brake system (if installed)

Check Joints of height adjustment adjustable towbar

Run this procedure

Brake Cable Adjustment Testing

Check if the towing eye rod of the overrun brake mechanism is in the outmost position

Check if the adjustable towbar (= option) is in the actual towing position

Apply the hand brake lever

Push the compressor a few centimeters backward so that the brake lever is automatically pulled further up

Check the catch lock in combination with the toothed sector. When the brake is adjusted, 2-3 teeth is the point that can feel the force of braking and vertical position is the point that the brake is completely locked

Sign off on the brake cable adjustment testing

Run this procedure
