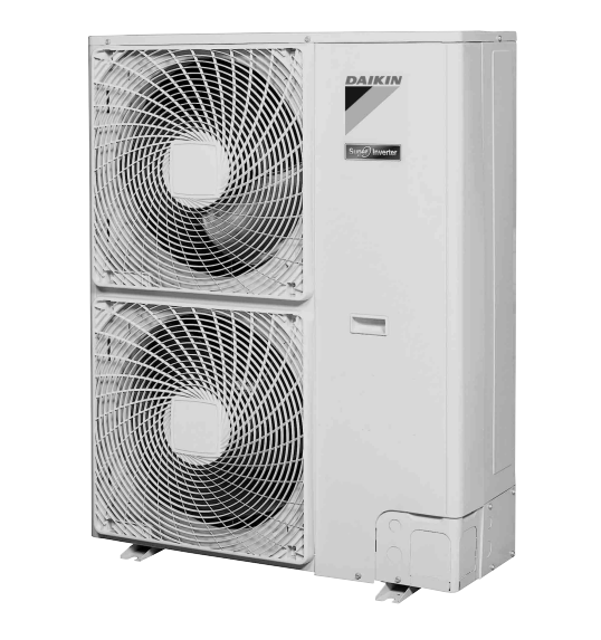

Daikin Outdoor Heat Pump RZQ125KV4A

Need answers fast?
Explore the manual using AI.

Daikin Outdoor Heat Pump RZQ125KV4A
Daikin Outdoor Heat Pump RZQ125KV4A

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Outdoor Heat Pump RZQ125KV4A

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Outdoor Heat Pump RZQ125KV4A

Daikin Outdoor Heat Pump RZQ125KV4A

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RZQ125KV4A

Integrate maintenance plans directly into your work orders in MaintainX.

Thermistor Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Remove the top panel and the front panel (2) and side panel accordance with the Procedure to remove Outside Panels.

Check mark

Pull out the outdoor air thermistor to the front, and then slide this thermistor to the right to remove it.

Check mark

Pinch the mounting spring that fixes the discharge pipe thermistor to pull out this thermistor.

Check mark

Press the fixing section of the suction pipe thermistor to pull out this thermistor.

Check mark

Pull the fixing bracket of the heat exchanger’s distribution pipe thermistor to the front, and then remove this thermistor.

Check mark

Press the fixing section of the intermediate heat exchanger thermistor to pull out this thermistor.

Check mark

The heat exchanger’s distribution pipe thermistor, intermediate heat exchanger thermistor, and liquid pipe thermistor are jointed together with a single connector. Consequently, these 3 thermistors should be replaced at the same time.

Check mark

Press the fixing section of the liquid pipe thermistor to pull out this thermistor.

Run this procedureArrow right

Compressor Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Recover the refrigerant

Check mark

Remove the front panel (2) and the front piping cover bracket

Check mark

Be sure to remove the compressor only after the refrigerant is completely recovered.

Check mark

Remove 1 out of the nuts that fix the compressor

Check mark

Be sure to cut 3 pipes by using a pipe cutter before disconnecting the brazed sections of pipes. A sudden disconnection of the brazed sections can cause oil to catch fire.

Check mark

Unscrew the 5 screws that fix the stop valve mounting plate, and then remove this mounting plate.

Check mark

Remove the gas piping and the liquid piping.

Check mark

Remove the compressor terminal cover.

Run this procedureArrow right

Outside Panel Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Suction grille removed

Check mark

Front panel (1) removed

Check mark

Top panel removed

Check mark

Front panel (2) removed

Check mark

Front piping cover removed

Check mark

Side piping cover removed

Check mark

Side rear panel removed

Check mark

Sign off on the panel removal

Run this procedureArrow right

Four Way Valve Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Refrigerant recovered?

Check mark

According to the procedure for the removal related to the outside panel, remove the front panel (2) and the side panel.

Check mark

According to the procedure to remove switch box, remove the switch box.

Check mark

Four way valve removed only after the refrigerant is completely recovered?

Check mark

1 Unscrew the 1 screw that fixes the four way valve coil, and then remove this coil.

Check mark

2 Remove brazing from the 4 places, and then remove the four way valve.

Check mark

(Refer to point column.)

Check mark

Four way valve temperature kept below 120°C during brazing work?

Run this procedureArrow right

Switch Box Removal

Check mark

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Check mark

Front panel removed in accordance with the Procedure to remove Outside Panels.

Check mark

Is it possible to remove the top panel?

Check mark

If the top panel cannot be removed, it is possible to pull the switch box to the front without removing the top panel.

Check mark

Upload a photo of the connectors to be disconnected.

Check mark

Precaution for mounting the pressure sensor: To prevent the lead wire from hanging over the PCB, hook the lead wire of 160 to 170 mm in length from the front end of the connector on the clamp.

Check mark

Each connector on the PCB disconnected.

Check mark

2 faston terminals removed.

Check mark

3 screws that fix the reactor unscrewed and reactor removed.

Run this procedureArrow right
