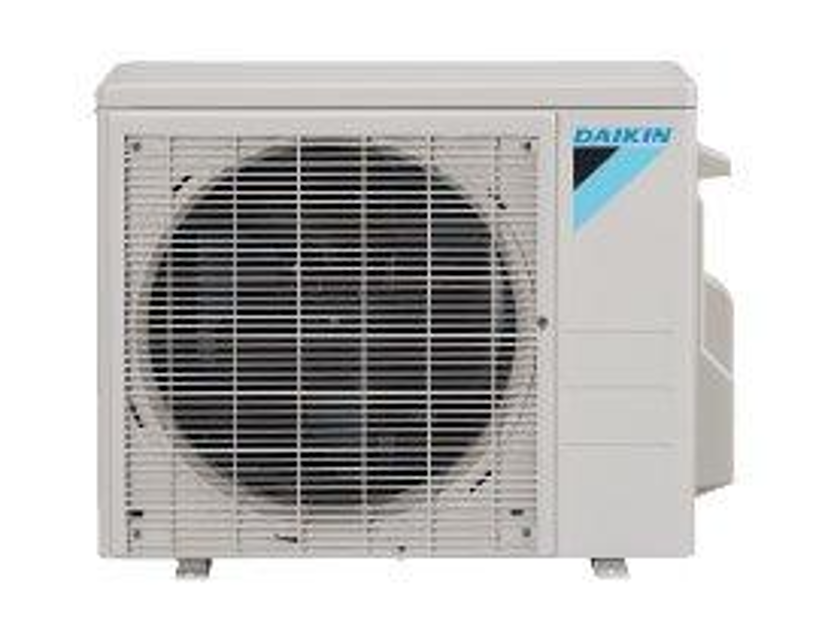

Daikin Outdoor Heat Pump RXL12QMVJU

Need answers fast?
Explore the manual using AI.

Daikin Outdoor Heat Pump RXL12QMVJU
Daikin Outdoor Heat Pump RXL12QMVJU

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Outdoor Heat Pump RXL12QMVJU

Daikin Outdoor Heat Pump RXL12QMVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RXL12QMVJU

Integrate maintenance plans directly into your work orders in MaintainX.

Power Module Check

Check mark

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Check mark

Voltage between (+) and (–) of the power module is about 0 V

Check mark

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Check mark

Compressor harness connector disconnected from the outdoor unit PCB

Check mark

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Check mark

Enter the resistance measurement

Check mark

Evaluate the measurement results

Check mark

Sign off on the power module check

Run this procedureArrow right

Main Circuit Short Check

Check mark

Voltage between (+) and (–) of the diode bridge (DB1)

Check mark

If voltage is not about 0V, stop the procedure and report the issue

Check mark

Resistance between the pins of the DB1

Check mark

If the resistance is infinity or less than 1 k(omega), short circuit occurs on the main circuit.

Check mark

Short circuit check

Check mark

Sign off on the main circuit short check

Run this procedureArrow right

Indoor Fan Motor Connector Check

Check mark

FTX09/12/15NMVJU(A)

Check mark

Fan motor wire breakdown/short circuit check

Check mark

(1) Check the connector for connection.

Check mark

(2) Turn the power off.

Check mark

(3) Check if each resistance at the phases U - V and V - W is within specified range in the table below.

Check mark

Motor control voltage check

Check mark

(1) Check the connector for connection.

Check mark

(2) Check the motor control voltage is generated (between the pins 2 - 3).

Check mark

Rotation pulse check

Run this procedureArrow right

Power Supply Waveform Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Measure the power supply waveform between No. 1 and No. 2 on the terminal strip

Check mark

Is the power supply waveform a sine wave?

Check mark

Upload a photo of the waveform

Check mark

Is there waveform disturbance near the zero-cross?

Check mark

Sign off on the power supply waveform check

Run this procedureArrow right

Rotation Pulse Check

Check mark

Warning: Ensure operation is off and power is off before starting the procedure

Check mark

Disconnect the connector S70 or S71

Check mark

Voltage between the pins 4 - 7

Check mark

Control voltage between the pins 4 - 3

Check mark

Rotation command voltage between the pins 4 - 2

Check mark

Keep operation off and power off. Connect the connector S70 or S71

Check mark

4 rotation pulses (0 ~ 15 VDC) at the pins 4 - 1 when the fan motor is rotated 1 turn by hand

Check mark

Fuse melted?

Check mark

If fuse is melted, check the outdoor fan motor for proper function

Run this procedureArrow right
