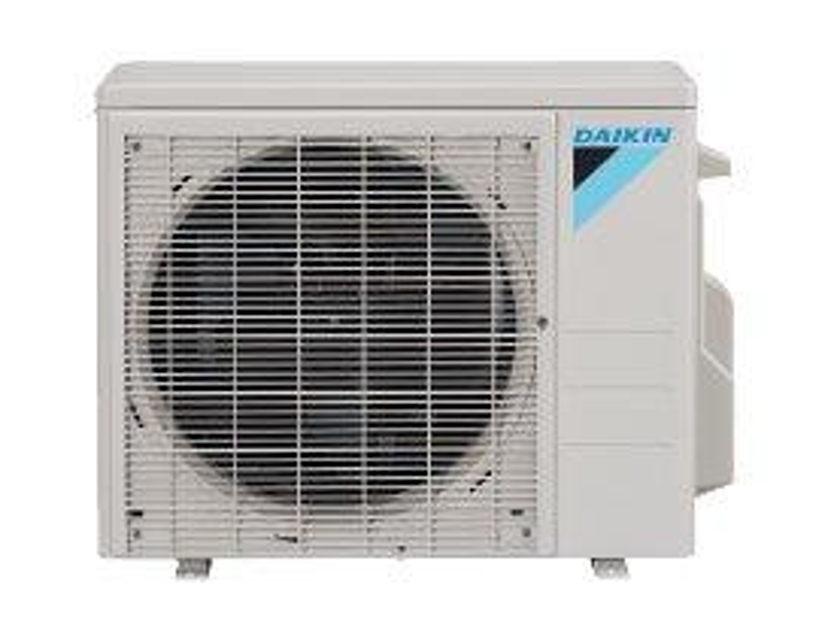

Daikin Outdoor Heat Pump RXL12QMVJU9A

Need answers fast?
Explore the manual using AI.

Daikin Outdoor Heat Pump RXL12QMVJU9A
Daikin Outdoor Heat Pump RXL12QMVJU9A

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Outdoor Heat Pump RXL12QMVJU9A

Daikin Outdoor Heat Pump RXL12QMVJU9A

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RXL12QMVJU9A

Integrate maintenance plans directly into your work orders in MaintainX.

Inverter Analyzer Check

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Power turned off?

Check mark

Install an inverter analyzer instead of a compressor

Check mark

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Check mark

Terminals removed from the compressor?

Check mark

Terminals connected to the terminals of the inverter analyzer without touching each other?

Check mark

Activate the power transistor test operation from the outdoor unit

Check mark

Power turned on?

Check mark

Center of TEMP button and OFF button on the remote controller pressed at the same time?

Run this procedureArrow right

Power Supply Waveform Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Measure the power supply waveform between No. 1 and No. 2 on the terminal strip

Check mark

Upload a photo of the measured waveform

Check mark

Is the power supply waveform a sine wave?

Check mark

Is there waveform disturbance near the zero-cross?

Check mark

Sign off on the power supply waveform check

Run this procedureArrow right

Indoor Fan Motor Connector Check

Check mark

FTX09/12/15NMVJU(A)

Check mark

Fan motor wire breakdown/short circuit check

Check mark

(1) Check the connector for connection.

Check mark

(2) Turn the power off.

Check mark

(3) Check if each resistance at the phases U - V and V - W is within specified range in the table below.

Check mark

Motor control voltage check

Check mark

(1) Check the connector for connection.

Check mark

(2) Check the motor control voltage is generated (between the pins 2 - 3).

Check mark

Rotation pulse check

Run this procedureArrow right

Thermistor Resistance Check

Check mark

Warning: Disconnect the thermistor ASSY from the PCB before measuring

Check mark

Enter the resistance value of the thermistor

Check mark

Does the measured resistance match the listed value?

Check mark

If the resistance does not match, replace the thermistor

Check mark

To check the thermistor soldered on a PCB, disconnect the PCB from other parts

Check mark

Enter the resistance value of the soldered thermistor

Check mark

Does the measured resistance of the soldered thermistor match the listed value?

Check mark

If the resistance does not match, replace the soldered thermistor

Check mark

Sign off on the thermistor resistance check

Run this procedureArrow right

Main Circuit Short Check

Check mark

Warning: Ensure the voltage between (+) and (-) of the diode bridge (DB1) is about 0 V before proceeding

Check mark

Enter the voltage between (+) and (-) of the diode bridge (DB1)

Check mark

Is the voltage approximately 0 V?

Check mark

If voltage is not approximately 0 V, stop the procedure and report the issue

Check mark

Enter the resistance between the pins of the DB1

Check mark

Is the resistance either infinity or less than 1 k(omega)?

Check mark

If resistance is either infinity or less than 1 k(omega), a short circuit occurs on the main circuit

Check mark

Sign off on the main circuit short check

Run this procedureArrow right
