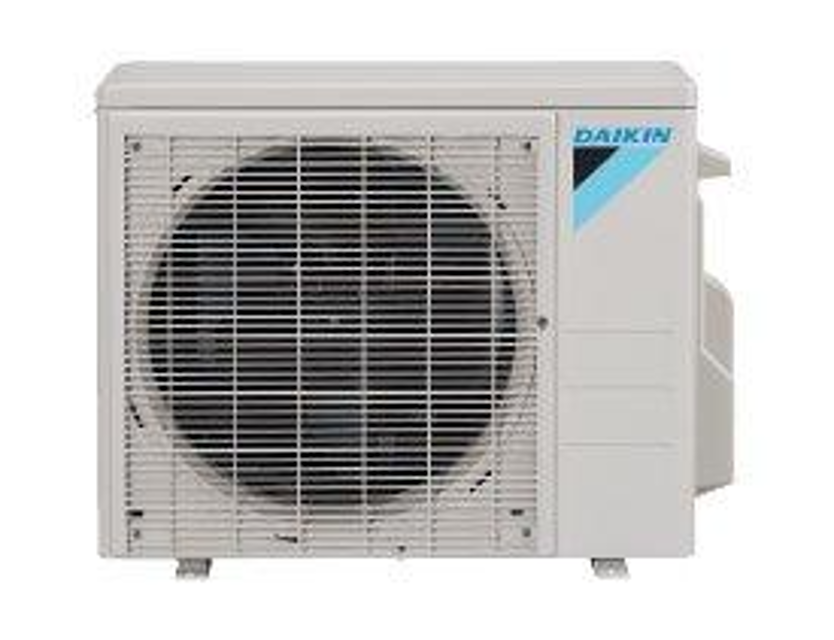

Daikin Outdoor Heat Pump RXL15QMVJUA

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on again

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

Outdoor unit PCB (main PCB) is not faulty

Sign off on the electronic expansion valve check

Set operation off and power off. Disconnect the connector S70 or S71.

Control voltage between the pins 4 - 3

Rotation command voltage between the pins 4 - 2

Keep operation off and power off. Connect the connector S70 or S71.

4 rotation pulses (0 ~ 15 VDC) at the pins 4 - 1 when the fan motor is rotated 1 turn by hand.

If fuse is melted, check the outdoor fan motor for proper function.

Warning: This check requires trained personnel with PPE!

Enter the power supply waveform measurement between No. 1 and No. 2 on the terminal strip

Is the power supply waveform a sine wave (Refer to Fig.1)?

Is there waveform disturbance near the zero-cross (Refer to sections circled in Fig.2)?

Upload a photo of the measured waveform

Sign off on the power supply waveform check

FTX09/12/15NMVJU(A) Fan motor wire breakdown/short circuit check

Check the connector for connection

Check if each resistance at the phases U - V and V - W is within specified range

Check the connector for connection

Check the motor control voltage is generated (between the pins 2 - 3)

Check the connector for connection

Warning: This procedure requires trained personnel with PPE!

Install an inverter analyzer instead of a compressor

Charged voltage of the built-in smoothing electrolytic capacitor dropped to 10 VDC or below?

Terminals removed from the compressor?

Terminals connected to the terminals of the inverter analyzer without touching each other?

Activate the power transistor test operation from the outdoor unit

Center of TEMP button and OFF button on the remote controller pressed at the same time?
